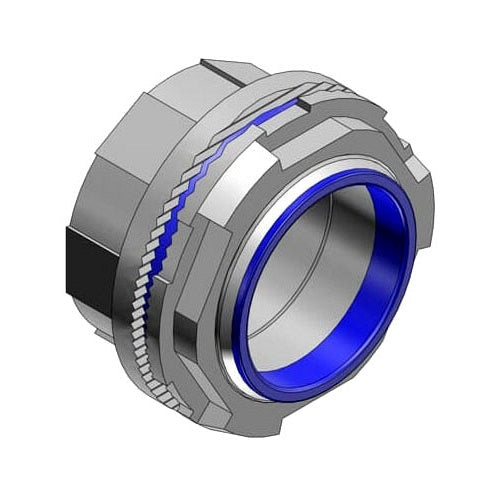

T&B H050A 1/2" Hub Type Conduit Fit

Overview

T&B H050A 1/2" Hub Type Conduit Fit

Product Specifications

• UPC: 78621090344
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Maximum Panel Thickness 3/16 Inch; Throat Diameter 19/32 Inch; Temperature Rating 105 Deg C; Enclosure Rating NEMA 3R/4/13; Application Hazardous Location; Applicable Standard NEC/CEC
• Catalog Number: H050A
• Type: Bulkhead, Tapered Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 1/2 Inch
• Size: 1-7/16 Inch Diameter x 1-9/16 Inch Length
• Constructional Feature: Water Tight
• Ground Type: Locknut
• Material: Copper-Free Aluminum (Hub/Locknut), Nitrile (Sealing Ring)
• Catalog Description: 1/2 INCH ALUMINUM, HUB CONNECTOR WITH THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
• Category: Elbows-Couplings-Nipples - Aluminum
• Full Technical Description: Bulkhead, Tapered Threaded Type; Copper-Free Aluminum (Hub/Locknut), Nitrile (Sealing Ring) Material; 1-7/16 Inch Diameter X 1-9/16 Inch Length Size; Imc/Rigid Conduit Used on; UL, CSA Approval; Locknut; 1/2 Inch Trade Size; Water Tight; Thermoplastic Insulated Throat Type; Bullet [R] Brand; Maximum Panel Thickness 3/16 Inch; Throat Diameter 19/32 Inch; Temperature Rating 105 Deg C; Enclosure Rating NEMA 3R/4/13; Application Hazardous Location; Applicable Standard Nec/Cec
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 786210903446
• SKU Name: t&b h050a

Resources

• Manufacturer Spec Sheet
