Additional Information: Throat Diameter 25/32 Inch; Maximum Panel Thickness 3/16 Inch; Temperature Rating 0 to 105 Deg C
Catalog Number: H075GRA-TB
Type: Straight, Threaded
Throat Type: Thermoplastic Insulated
Trade Size: 3/4 Inch
Size: 1-7/16 Inch Diameter x 1-19/32 Inch Length
Constructional Feature: NEMA 3R/4/13
Ground Type: Grounding
Material: Copper-Free Aluminum (Hub and Locknut), Nitrile (Sealing Ring)

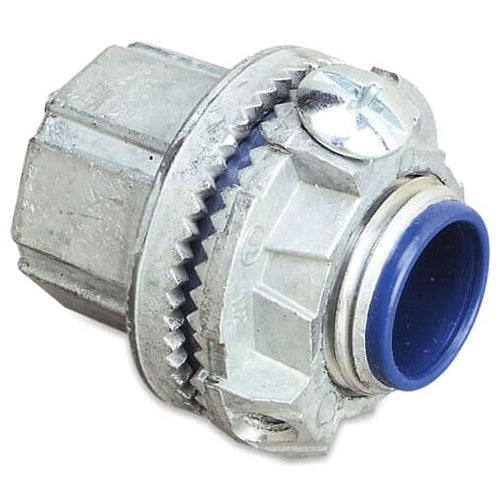

Catalog Description: 3/4 INCH ALUMINUM, GROUNDING HUB WITH THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Straight, Threaded Type; Copper-Free Aluminum (Hub and Locknut), Nitrile (Sealing Ring) Material; 1-7/16 Inch Diameter X 1-19/32 Inch Length Size; Imc/Rigid Conduit Used on; UL, CSA Approval; Grounding; 3/4 Inch Trade Size; NEMA 3R/4/13; Thermoplastic Insulated Throat Type; Bullet [R] Brand; Throat Diameter 25/32 Inch; Maximum Panel Thickness 3/16 Inch; Temperature Rating 0 to 105 Deg C
