Additional Information: Dimension 1.65 Inch L x 0.77 Inch W x 0.05 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
Catalog Number: H971
Model: H
Type: Standard
Minimum Conductor Size: 1 AWG (Aircraft)
Maximum Conductor Size: 1/0 AWG
Color: Metallic
Insulation Type: Non-Insulated
Stud Size: 1/4 Inch

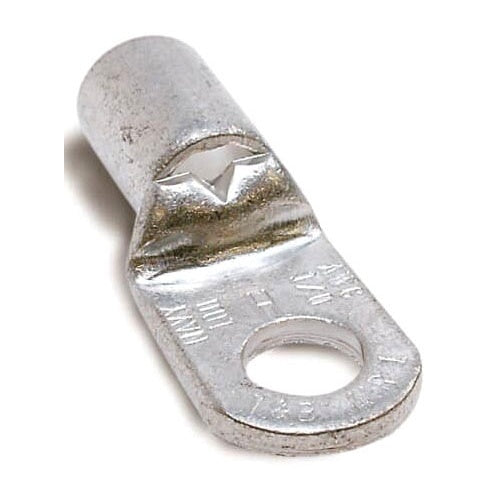

Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 1.65 INCHES, WIDTH .77 INCHES, BOLT HOLE 1/4 INCH, WIRE RANGE 1AN-1/0, COPPER, TIN PLATED, 100 PACK
Category: Large Terminals & Connectors
Full Technical Description: Standard Type; Metallic Color; 1 AWG (Aircraft) min. Conductor Size; 1/0 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 150 Deg C Temperature Rating; 100 Standard Package; 1/4 Inch Stud Size; Non-Insulated Insulation Type; Dimension 1.65 Inch L X 0.77 Inch W X 0.05 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; H Model
