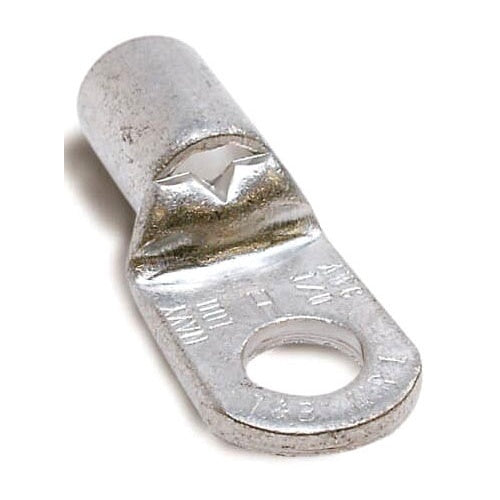

T&B L40-38 Non-Insulated - Tub Ring Terminal 4/0, 3/8,
Product Specifications
UPC: 78621080599
Standard Package: 5
Approval: UL 486-A, CSA 22.2
Additional Information: Dimension 2-1/4 Inch L x 1.04 Inch W x 0.07 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
Catalog Number: L40-38
Model: L
Type: Standard
Maximum Conductor Size: 4/0 AWG
Color: Metallic
Insulation Type: Non-Insulated
Stud Size: 3/8 Inch
Temperature Rating: 150 Deg C
Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 2.25 INCHES, WIDTH 1.04 INCHES, BOLT HOLE 3/8 INCH, WIRE RANGE 3/0AN-4/0, COPPER, TIN PLATED
Category: Large Terminals & Connectors
Full Technical Description: Standard Type; Metallic Color; 4/0 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 150 Deg C Temperature Rating; 5 Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; Dimension 2-1/4 Inch L X 1.04 Inch W X 0.07 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; L Model
