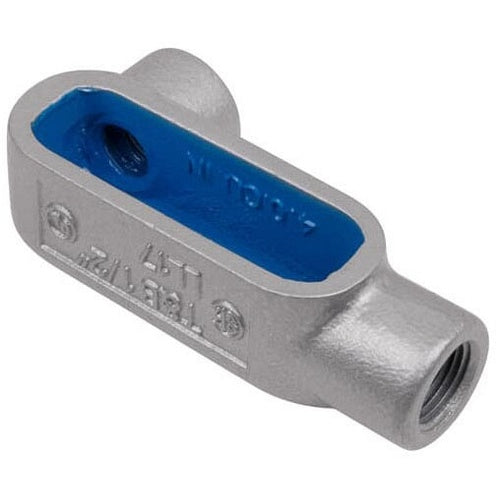

T&B LL37 1" Bluekote Conduit Body Form 7

Overview

T&B LL37 1" Bluekote Conduit Body Form 7

Product Specifications

• UPC: 78621092493
• Hub Size: 1 Inch
• Size: 6 Inch Length x 2.6 Inch Width x 1.9 Inch Height
• Installation: Threaded
• Material: Zinc Plated, Acrylic Epoxy Coated and Internal PTFE Based Bluekote Coated Gray Iron (Body), Stainless Steel Screw, Neoprene Gasket
• Form Type: Form 7
• Approval: UL 514A, UL 514B, UL E2969, CSA C22.2
• Used On: IMC/Rigid Conduit
• Additional Information: Applicable Standard Federal Specification WC-586D
• Catalog Number: LL37
• Brand Name: Elastimold
• Model: LL
• Access Opening: Left Side
• Configuration: LL
• Cover Type: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-On
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: 1 INCH FORM 7, LL CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Plated, Acrylic Epoxy Coated and Internal PTFE Based Bluekote Coated Gray Iron (Body), Stainless Steel Screw, Neoprene Gasket Material; 6 Inch Length X 2.6 Inch Width X 1.9 Inch Height Size; Imc/Rigid Conduit Used on; 1 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL 514A, UL 514B, UL E2969, CSA C22.2 Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-on Cover Type; 90 Degree Hub Location; Form 7 Form Type; Left Side Access Opening; Applicable Standard Federal Specification WC-586D; LL Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210924939
• SKU Name: t&b ll37
