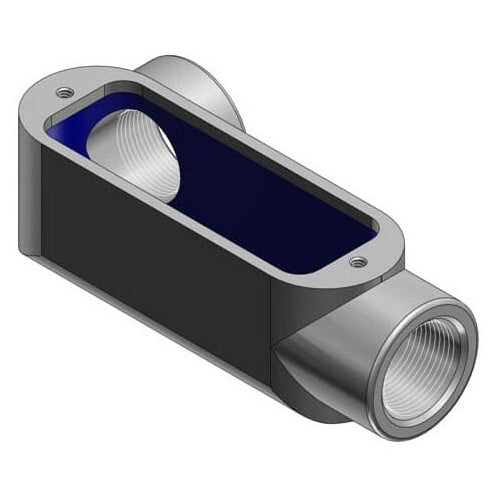

T&B LL68 2" Conduit Body, Gray Iron, LL, Form-8

Overview

T&B LL68 2" Conduit Body, Gray Iron, LL, Form-8

Product Specifications

• UPC: 78621016582
• Installation: THREADED
• Material: SAND CAST ZINC PLATED, ALUMINUM ACRYLIC COATED GRAY IRON ALLOY BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW
• Form Type: FORM 8
• Approval: UL 514-A, UL 514-B, CSA 22.2
• Used On: RIGID CONDUIT
• Additional Information: APPLICABLE STANDARD FEDERAL SPECIFICATION WC-586D
• Catalog Number: LL68
• Access Opening: LEFT SIDE
• Configuration: LL
• Cover Type: SAND CAST ZINC PLATED, ALUMINUM ACRYLIC COATED GRAY (IRON ALLOY), STAMPED ZINC PLATED, CLEAR CHROMATE COATED (STEEL), SCREW ON
• Hub Location: 90 DEG
• Number Of Hubs: 2
• Hub Size: 2 INCH
• Size: 11 INCH L X 5 INCH W X 3-9/16 INCH H
• Catalog Description: 2 INCH FORM 8, LL CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Gray Iron With Zinc Plated/Epoxy Powder Coated Backed/Bluekote Non-Stick Internal Material; 11 Inch Length X 5 Inch Width X 3.56 Inch Height Size; Rigid/Imc Conduit Used on; 2 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL E2969/514A/514B, CSA C22.2 Approval; 90 Degree Hub Location; Form 8 Form Type; Left Side Access Opening
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210165820
• SKU Name: t&b ll68
