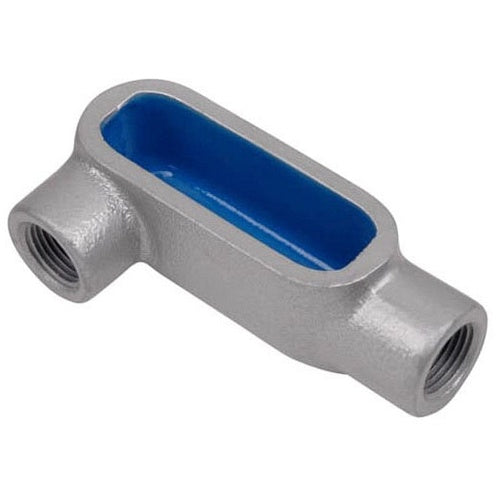

T&B LR47 1-1/4" Bluekote Conduit Body Form 7

Overview

T&B LR47 1-1/4" Bluekote Conduit Body Form 7

Product Specifications

• UPC: 78621093352
• Size: 6.45 Inch L x 3.5 Inch W x 2.3 Inch H
• Installation: Threaded
• Material: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw
• Form Type: Form 7
• Approval: UL 514A, UL 514B, UL E2969, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Applicable Standard Federal Specification WC-586D
• Catalog Number: LR47
• Brand Name: BlueKote[R]
• Access Opening: Right Side
• Configuration: LR
• Cover Type: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 1-1/4 Inch
• Catalog Description: 1-1/4 INCH FORM 7, LR CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw Material; 6.45 Inch L X 3.5 Inch W X 2.3 Inch H Size; Rigid/Imc Conduit Used on; 1-1/4 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL 514A, UL 514B, UL E2969, CSA C22.2 Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-on Cover Type; 90 Deg Hub Location; Form 7 Form Type; Right Side Access Opening; BLUEKOTE[R] Brand; Applicable Standard Federal Specification WC-586D
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210933528
• SKU Name: t&b lr47

Resources

• Manufacturer Spec Sheet
