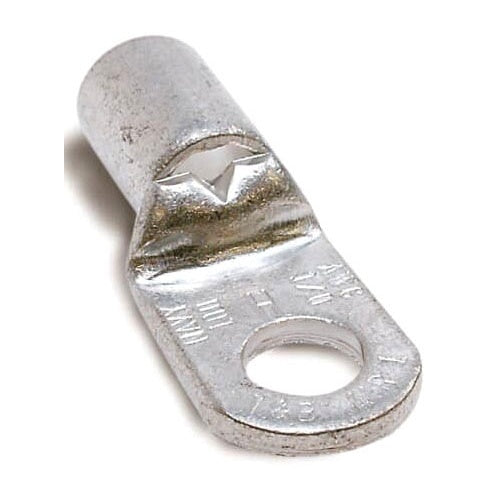

T&B M973 Non-Insulated - Tub Ring Terminal 4/0An-250M

Overview

T&B M973 Non-Insulated - Tub Ring Terminal 4/0An-250M

Product Specifications

• UPC: 78621081628
• Temperature Rating: 105 Deg F
• Standard Package: 250 per Outer Pack
• Approval: UL 486A/B, CSA C22.2
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 2.4 Inch Length x 1.12 Inch Width x 0.07 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Catalog Number: M973
• Brand Name: Sta-Kon
• Type: Large, Tubular
• Minimum Conductor Size: 4/0 AWG (Aircraft)
• Maximum Conductor Size: 250 KCMIL
• Color: Metallic
• Insulation Type: Non-Insulated
• Stud Size: 3/8 Inch
• Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 2.40 INCHES, WIDTH 1.12 INCHES, BOLT HOLE 3/8 INCH, WIRE RANGE 4/0AN-250KCMIL, COPPER, TIN PLATED, 50 PACK
• Category: Large Terminals & Connectors
• Full Technical Description: Large, Tubular Type; Metallic Color; 4/0 AWG (Aircraft) min. Conductor Size; 250 kcmil Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 105 Deg F Temperature Rating; 250 Per Outer Pack Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 2.4 Inch Length X 1.12 Inch Width X 0.07 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210816289
• SKU Name: t&b m973

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
