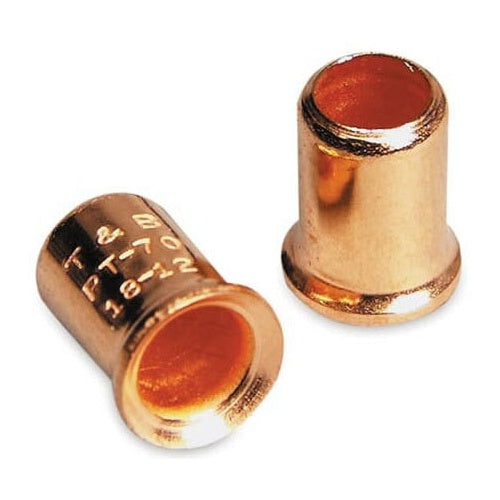

T&B PT70 Pigtail Wire Joint 3-No12 Max 2-No16 Min

Overview

T&B PT70 Pigtail Wire Joint 3-No12 Max 2-No16 Min

Product Specifications

• UPC: 78621080381
• Material: Copper Plated Steel
• Standard Package: 200 per Inner Pack
• Approval: UL, CSA
• Additional Information: Color Metallic; Overall Dimension 0.29 Inch Diameter x 0.34 Inch Length
• Catalog Number: PT70
• Brand Name: Sta-Kon
• Model: PT
• Type: Non-Insulated, 1-Piece
• Wire Type: Copper
• Wire Size: 14 to 12 AWG
• Minimum Wire Combination Size: (2) #14
• Maximum Wire Combination Size: (3) #12
• Catalog Description: NON-INSULATED CRIMP-ON WIRE JOINT, LENGTH .34 INCHES, BASE DIAMETER .29 INCHES, WIRE RAGE 2-#14 TO 3-#12 STEEL, COPPER PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Non-Insulated, 1-Piece Type; Copper Plated Steel Material; (2) #14 min. Wire Combination Size; (3) #12 Max. Wire Combination Size; 14 to 12 AWG Wire Size; UL, CSA Approval; 200 Per Inner Pack Standard Package; Copper Wire Type; Color Metallic; Overall Dimension 0.29 Inch Diameter X 0.34 Inch Length; PT Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Crimp On Wire Connector
• Unspsc: 39121452
• UPC 12 Digit: 786210803814
• SKU Name: t&b pt70
