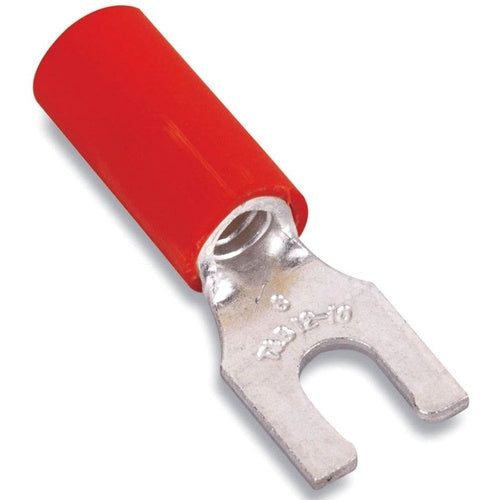

T&B RA2253 Insulated Nylon Locking Fork Terminal 22-16 No10 Red

Overview

T&B RA2253 Insulated Nylon Locking Fork Terminal 22-16 No10 Red

Product Specifications

• UPC: 78621088736
• Approval: UL, UL (Canada and US), CSA
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 0.86 Inch Length x 0.29 Inch Width; Material Copper; Finish Electro Tin Plated
• Catalog Number: RA2253
• Type: Locking
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Color: Red
• Insulation Type: Nylon Insulated
• Stud Size: #10
• Standard Package: 5000
• Catalog Description: NYLON INSULATED LOCKING FORK TERMINAL, LENGTH .86 INCHES, WIDTH .29 INCHES, MAXIMUM INSULATION .136, BOLT HOLE #10, WIRE RANGE #22-#16 AWG, COLOR RED, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Locking Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL, UL (Canada and Us), CSA Approval; 5000 Standard Package; #10 Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 0.86 Inch Length X 0.29 Inch Width; Material Copper; Finish Electro Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210887364
• SKU Name: t&b ra2253
