Additional Information: Size 0.97 Inch Length x 0.25 Inch Width; Maximum Insulation 0.17 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
Catalog Number: RB2207
Type: Locking
Minimum Conductor Size: 18 AWG
Maximum Conductor Size: 14 AWG
Color: Blue
Insulation Type: Vinyl Insulated
Stud Size: #6
Temperature Rating: 105 Deg C

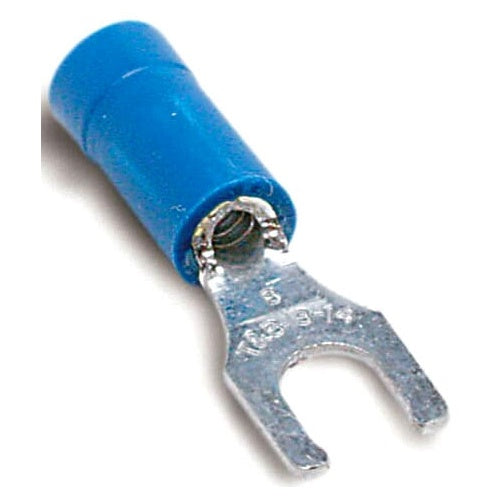

Catalog Description: VINYL INSULATED LOCKING FORK TERMINAL, LENGTH .97 INCHES, WIDTH .25 INCHES, MAXIMUM INSULATION .170, BOLT HOLE #6, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED, 1,000 PACK
Category: Small Terminals & Connectors
Full Technical Description: Locking Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 1000 Per Pack Standard Package; #6 Stud Size; Vinyl Insulated Insulation Type; Size 0.97 Inch Length X 0.25 Inch Width; Maximum Insulation 0.17 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
