Additional Information: Voltage Rating 600 Volt; Overall Dimension 1 Inch Length x 0.37 Inch Width; Barrel Type Brazed Seam; Material Copper; Finish Electro Tin Plated
Catalog Number: RC1153
Brand Name: Sta-Kon
Type: Standard
Minimum Conductor Size: 12 AWG
Maximum Conductor Size: 10 AWG
Color: Yellow
Insulation Type: Nylon Insulated
Stud Size: #10

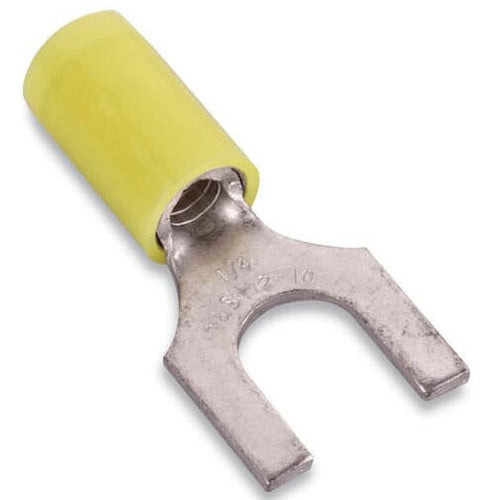

Catalog Description: NYLON INSULATED FORK TERMINAL, LENGTH 1.00 INCHES, WIDTH .37 INCHES, MAXIMUM INSULATION .210, BOLT HOLE #10, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, 500 PACK
Category: Small Terminals & Connectors
Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 5000 Per Outer Pack Standard Package; #10 Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1 Inch Length X 0.37 Inch Width; Barrel Type Brazed Seam; Material Copper; Finish Electro Tin Plated
