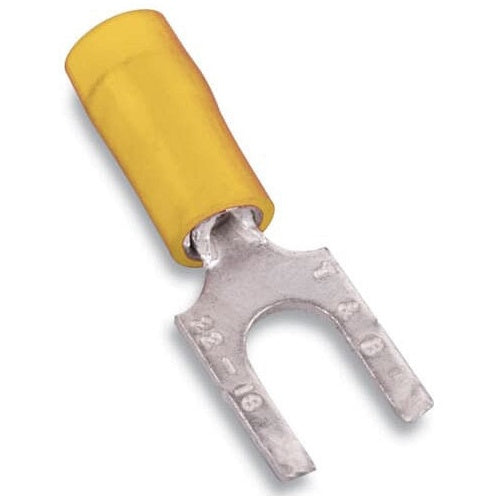

T&B RC1253 Insulated Nylon Fork Terminal Flange 12-10 Bolt No10

Overview

T&B RC1253 Insulated Nylon Fork Terminal Flange 12-10 Bolt No10

Product Specifications

• UPC: 78621082037
• Temperature Rating: 105 Deg C
• Standard Package: 5000
• Approval: UL, CSA
• Additional Information: Size 1 Inch L x 0.38 Inch W; Finish Electroplated Tin
• Catalog Number: RC1253
• Model: RC
• Type: Flanged
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Nylon Insulated
• Stud Size: #10
• Catalog Description: NYLON INSULATED FORK TERMINAL WITH FLANGED TONGUE, LENGTH 1.00 INCHES, WIDTH .38 INCHES, MAXIMUM INSULATION .210, BOLT HOLE #10, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, 500 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Flanged Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 5000 Standard Package; #10 Stud Size; Nylon Insulated Insulation Type; Size 1 Inch L X 0.38 Inch W; Finish Electroplated Tin; RC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210820378
• SKU Name: t&b rc1253

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
