Additional Information: Size 0.97 Inch L x 0.31 Inch W; Finish Electroplated Tin
Catalog Number: RC2203
Model: RC
Type: Locking
Minimum Conductor Size: 12 AWG
Maximum Conductor Size: 10 AWG
Color: Yellow
Insulation Type: Nylon Insulated
Stud Size: #6

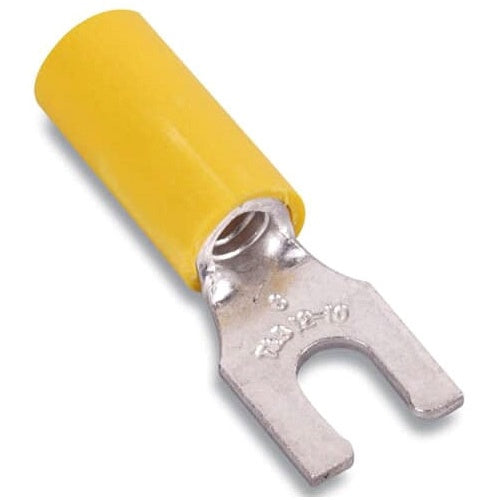

Catalog Description: NYLON INSULATED LOCKING FORK TERMINAL, LENGTH .97 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .210, BOLT HOLE #6, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, 500 PACK
Category: Small Terminals & Connectors
Full Technical Description: Locking Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 5000 Standard Package; #6 Stud Size; Nylon Insulated Insulation Type; Size 0.97 Inch L X 0.31 Inch W; Finish Electroplated Tin; RC Model
