Additional Information: Size 1 Inch Length x 0.37 Inch Width; Maximum Insulation 0.21 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
Catalog Number: RC2213
Type: Locking
Minimum Conductor Size: 12 AWG
Maximum Conductor Size: 10 AWG
Color: Yellow
Insulation Type: Nylon Insulated
Stud Size: #8
Temperature Rating: 105 Deg C

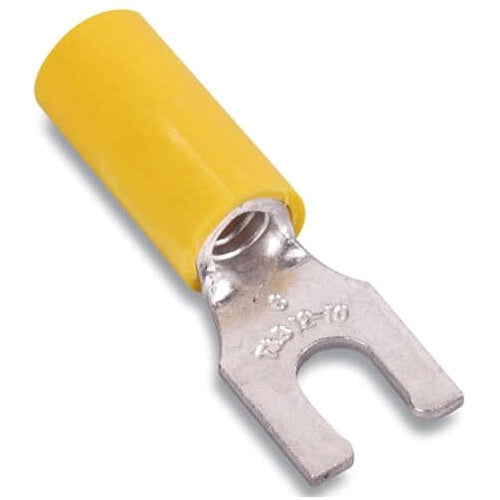

Catalog Description: NYLON INSULATED LOCKING FORK TERMINAL, LENGTH 1.00 INCHES, WIDTH .37 INCHES, MAXIMUM INSULATION .210, BOLT HOLE #8, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, 500 PACK
Category: Small Terminals & Connectors
Full Technical Description: Locking Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 500 Per Pack Standard Package; #8 Stud Size; Nylon Insulated Insulation Type; Size 1 Inch Length X 0.37 Inch Width; Maximum Insulation 0.21 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
