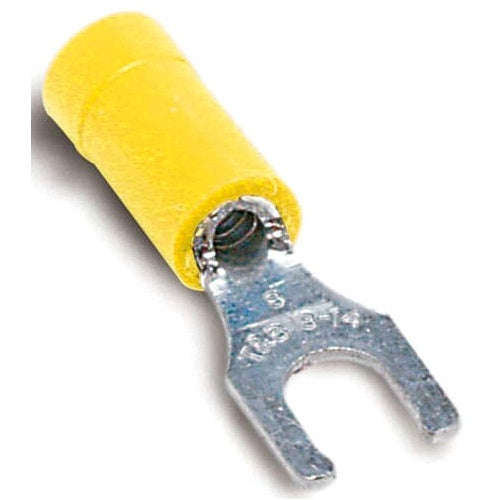

T&B RC2237 Insulated Vinyl Locking Fork Terminal 12-10 Bolt 1/4

Overview

T&B RC2237 Insulated Vinyl Locking Fork Terminal 12-10 Bolt 1/4

Product Specifications

• UPC: 78621082048
• Temperature Rating: 105 Deg C
• Standard Package: 5000
• Approval: UL, CSA
• Additional Information: Size 1.09 Inch L x 0.49 Inch W; Finish Electroplated Tin
• Catalog Number: RC2237
• Model: RC
• Type: Locking
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Vinyl Insulated
• Stud Size: 1/4 Inch
• Catalog Description: VINYL INSULATED LOCKING FORK TERMINAL, LENGTH 1.09 INCHES, WIDTH .49 INCHES, MAXIMUM INSULATION .220, BOLT HOLE 1/4 INCH, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, 500 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Locking Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 5000 Standard Package; 1/4 Inch Stud Size; Vinyl Insulated Insulation Type; Size 1.09 Inch L X 0.49 Inch W; Finish Electroplated Tin; RC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210820484
• SKU Name: t&b rc2237
