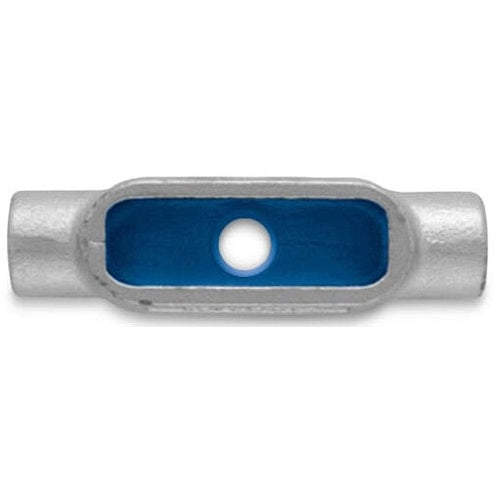

T&B T100MCG 1" Conduit Fitting

Overview

High load capacity up to 500 lbs, Optimized for minimal maintenance requirements, Advanced corrosion resistance for enhanced durability

Product Specifications

• UPC: 78620986878
• Hub Size: 1 Inch
• Size: 7.5 Inch L x 2.65 Inch W x 1.8 Inch H
• Installation: Threaded
• Material: Aluminum Acrylic Coated Malleable Zinc Plated Iron, Neoprene Gasket
• Approval: UL E2969, CSA
• Used On: Rigid/IMC Conduit
• Additional Information: Includes Cover, Gasket
• Catalog Number: T100MCG
• Brand Name: Unipak
• Model: 35
• Access Opening: Tee Side
• Configuration: T
• Cover Type: Zinc Plated Stamped Steel
• Hub Location: Tee
• Number Of Hubs: 3
• Catalog Description: 1 INCH SERIES 35 UNIPAK TYPE T CONDUIT BODY, COVER AND GASKET, BODY MATERIAL AND FINISH MALLEABLE IRON ZINC PLATED WITH ALUMINUM, ACRYLIC COATING, COVER MATERIAL AND FINISH STAMPED STEEL ZINC PLATED, GASKET MATERIAL NEOPRENE
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Aluminum Acrylic Coated Malleable Zinc Plated Iron, Neoprene Gasket Material; 7.5 Inch L X 2.65 Inch W X 1.8 Inch H Size; Rigid/Imc Conduit Used on; 1 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL E2969, CSA Approval; Zinc Plated Stamped Steel Cover Type; Tee Hub Location; Tee Side Access Opening; Unipak Brand; Includes Cover, Gasket; 35 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Products
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786209868787
• SKU Name: CRSH T100MCG
