T&B T28 3/4" Conduit Body Iron T Form-8

Overview

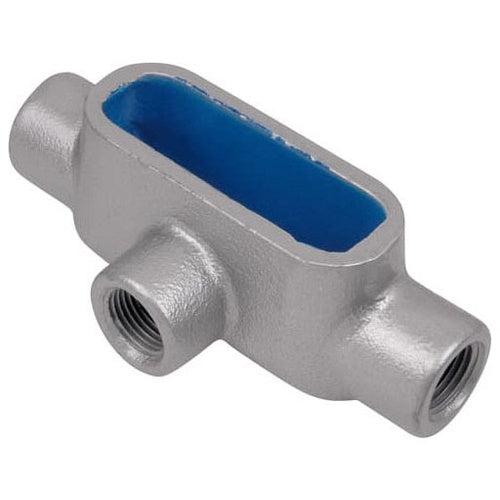

T&B T28 3/4" Conduit Body Iron T Form-8

Product Specifications

• UPC: 78621016610
• Size: 6.28 Inch Length x 2 Inch Width x 2.31 Inch Height
• Installation: Threaded
• Material: Zinc Plated with Epoxy Powder Coated Gray Iron
• Form Type: Form 8
• Approval: UL 514A/514B/E2969, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Includes (2) Mounting Hole; Applicable Standard Federal Specification WC-586D
• Catalog Number: T28
• Brand Name: BlueKote[R]
• Model: T
• Access Opening: Back
• Configuration: T
• Hub Location: 90 Degree
• Number Of Hubs: 3
• Hub Size: 3/4 Inch
• Catalog Description: 3/4 INCH FORM 8 (T) CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw Material; 6-9/32 Inch L X 2-5/16 Inch W X 2 Inch H Size; Rigid/Imc Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A, UL 514B, UL E2969, CSA C22.2 Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-on Cover Type; Tee Hub Location; Form 8 Form Type; Tee Side Access Opening; BLUEKOTE[R] Brand; Applicable Standard Federal Specification WC-586D
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210166100
• SKU Name: t&b t28
