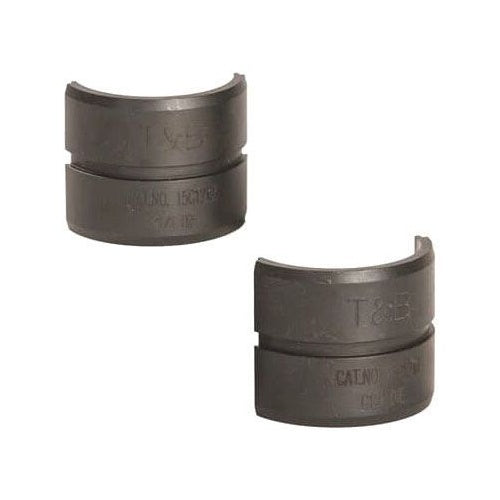

T&B TBM12D-4 Multi Nest Die Set For Tbm12 No4

Overview

High-strength construction for maximum durability, Effective heat management for enhanced performance, Industry-compliant design for safety and reliability

Product Specifications

• UPC: 78621081071
• Catalog Number: TBM12D-4
• Brand Name: Color-Keyed.
• Model: TBM12
• Type: MULTI NEST
• Connector Type: H TAP
• Wire Size: 10 AWG TO 750 KCMIL (ALUMINUM), 8 AWG TO 750 KCMIL (COPPER)
• Used On: TBM12 HYDRAULIC
• Catalog Description: MULTI NEST DIE SET FOR TBM12 - DIE 1) COPPER CODE 2/0AWG, FLEX/24 275/24, COLOR CODE BLACK, DIE CODE 45. DIE 2) COPPER CODE 3/0 AWG, FLEX/24 325/24, COLOR CODE ORANGE, DIE CODE 50. DIE 3) AL/CU #1AWG, COLOR CODE GOLD, DIE CODE 45. DIE 4) COPPER CODE AL/CU 1/0 AWG, COLOR CODE TAN, DIE CODE 50. DIE 5) COPPER CODE 350 KCMIL, FLEX/24 775/24 (SHORT), AL/CU 250 KCMIL, COLOR CODE RED, DIE CODE 71H. DIE 6) COPPER CODE 400 KCMIL, FLEX/24 775/24 (LONG), AL/CU 300 KCMIL, COLOR CODE BLUE, DIE CODE 76H
• Category: Hand Tool Bits, Parts, Accessories
• Full Technical Description: Multi Nest Type; TBM12 Hydraulic Used on; 10 AWG to 750 kcmil (Aluminum), 8 AWG to 750 kcmil (Copper) Wire Size; H Tap Connector Type; Color-Keyed. Brand; TBM12 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Crimping Tool Die
• Unspsc: 27112820
• UPC 12 Digit: 786210810713
• SKU Name: T&B TBM12D4
