Additional Information: Enclosure Rating Class I Div 2; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance, Hazardous Location; Applicable Standard NEMA FB-1

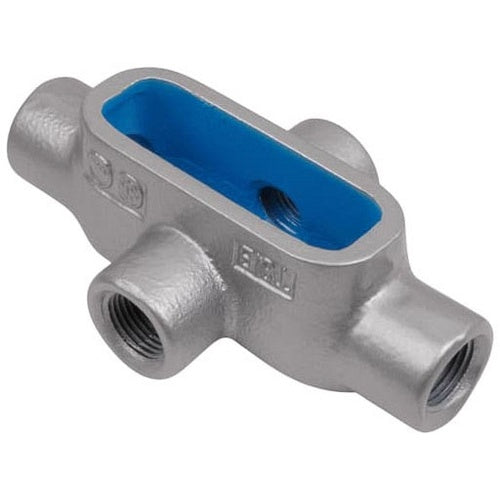

Catalog Description: BLUEKOTE FORM 7, (X) 1-1/2 INCH CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
Category: Steel Conduit Bodies & Covers
Full Technical Description: Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Grayloy-Iron Material; 8.19 Inch Length X 4.63 Inch Width X 2.56 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; X Configuration; 4 Hub(S); UL 514A/B, CSA C22.2, NEC Approval; Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Grayloy-Iron Cover Type; Cross Hub Location; Form 7 Form Type; Cross Side Access Opening; Enclosure Rating Class I Div 2; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance, Hazardous Location; Applicable Standard NEMA FB-1
