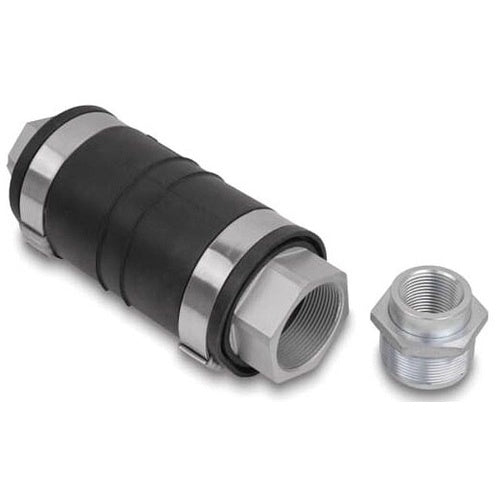

T&B XD6-TB 2" Expansion/Deflection Coupling

Overview

T&B XD6-TB 2" Expansion/Deflection Coupling

Product Specifications

• UPC: 78620989416
• Approval: UL, UL (Canada and US), CSA C22.2
• Used On: IMC/Rigid Conduit
• Additional Information: APPLICATION BRIDGE, TUNNEL, INTER-BUILDING WALKWAY, DOCK, PIER, WASTE WATER AND WATER TREATMENT FACILITY
• Catalog Number: XD6-TB
• Trade Size: 2 Inch
• Diameter: 4-11/16 Inch
• Length: 9-3/4 Inch
• Maximum Movement: 3/4 Inch, 30 Degree
• Constructional Feature: Corrosion Resistant, Watertight, Tamperproof
• Ground Type: Internally Grounded
• Material: Zinc Plated Aluminum Acrylic Painted Ductile Cast Iron (Hub), Stainless Steel (Sleeve), Copper (Mounting Plate), Zinc Plated Steel (Hub Ring), Neoprene (Jacket), Stainless Steel (Jacket Strap)
• Catalog Description: 2 INCH XD CAST IRON EXPANSION/DEFLECTION COUPLING WITH ELECTRO ZINC PLATING
• Category: Pvc Cond Clamps,Straps,Expan. Cplg
• Full Technical Description: Zinc Plated Aluminum Acrylic Painted Ductile Cast Iron (Hub), Stainless Steel (Sleeve), Copper (Mounting Plate), Zinc Plated Steel (Hub Ring), Neoprene (Jacket), Stainless Steel (Jacket Strap) Material; 9-3/4 Inch; Imc/Rigid Conduit Used on; 3/4 Inch, 30 Degree Max. Movement; UL, UL (Canada and Us), CSA C22.2 Approval; 4-11/16 Inch Diameter; Internally Grounded; 2 Inch Trade Size; Corrosion Resistant, Watertight, Tamperproof; Application Bridge, Tunnel, Inter-Building Walkway, Dock, Pier, Waste Water and Water Treatment Facility
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Products
• Sub Category: Rigid/EMT Expansion/Deflection Joint
• Unspsc: 39131707
• UPC 12 Digit: 786209894168
• SKU Name: t&b xd6tb

Resources

• Manufacturer Spec Sheet
