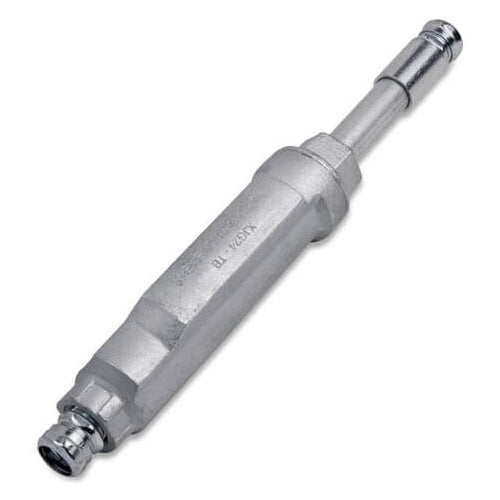

T&B XJG74-EMT 2-1/2" Conduit Expansion Coupling

Overview

T&B XJG74-EMT 2-1/2" Conduit Expansion Coupling

Product Specifications

• UPC: 78620986925
• Approval: UL, CSA
• Used On: EMT CONDUIT
• Additional Information: PACKING MATERIAL PTFE/SYNTHETIC FIBER
• Catalog Number: XJG74-EMT
• Type: EXPANSION
• Trade Size: 2 1/2 INCH
• Diameter: 4.52 INCH
• Length: 23.23 INCH
• Maximum Movement: 4 INCH
• Constructional Feature: TAMPER PROOF
• Material: ZINC PLATED ALUMINUM ACRYLIC PAINTED DUCTILE IRON BODY, TINNED COPPER BRAID INTERNAL BONDING JUMPER, CARBON STEEL
• Catalog Description: 2-1/2 INCH XJG CONDUIT EXPANSION COUPLING WITH INTERNAL BONDING JUMPER, 4 INCH MOVEMENT FOR USE WITH EMT CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Expansion Type; Zinc Plated Aluminum Acrylic Painted Ductile Iron Body, Tinned Copper Braid Internal Bonding Jumper, Carbon Steel Material; 23.23 Inch; EMT Conduit Used on; 4 Inch Max. Movement; UL, CSA Approval; 4.52 Inch Diameter; 2 1/2 Inch Trade Size; Tamper Proof; Packing Material Ptfe/Synthetic Fiber
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Products
• Sub Category: Rigid/Emt Expansion/Deflection Joint
• Unspsc: 39121434
• UPC 12 Digit: 786209869258
• SKU Name: t&b xjg74emt
