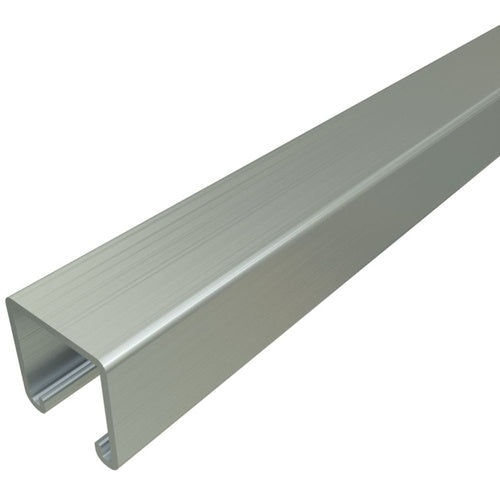

Unistrut P1000-10HG 1-5/8" x 1-5/8", 12 Gauge Channel, Solid

Overview

Unistrut P1000-10HG 1-5/8" x 1-5/8", 12 Gauge Channel, Solid

Product Specifications

• Brand Name: Unistrut
• Material Standard: ASTM A1011
• Special Features: Part of Complete System
• Sub Brand: Metal Framing Components
• Type: Solid Channel
• Weight: 1.89 lb/ft
• Width: 1.625 in
• Depth: 1-5/8 in
• Finish: Hot-Dip Galvanize
• Flange Thickness: 12 GA
• Flange Width: 1-5/8 IN
• Gauge: 12 GA
• Grade: 33
• Length: 10 ft
• Material Composition: Low Carbon Steel
• Catalog Description: STRUT CHANNEL, 12GA, 1-5/8"X 1-5/8", SOLID, HG
• Category: Channel & Strut
• Full Technical Description: Metal Framing, Single Type; ASTM A1011 SS Grade 33 Low Carbon Steel Material; Hot Dip Galvanized Finish; 10 Foot; 1-5/8 Inch; 1-5/8 Inch; Solid Configuration; UL E19459, CSA 013669 Applicable Standard; 12 Gauge Thickness; Cold Formed Process; 201.4 Pound Per 100 Foot Weight; 1 Channel(S); 1.4 Inch Deflection; 0.555 Square Inch Cross Section Area; 340 Pound Beam Load Rating; 2700 Pound (0.65 Load Factor) Column Load Rating; P1000 Model
• Made In Usa: Yes
• Manufacturer: ATKORE- UNISTRUT
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel/Strut
• Unspsc: 30101804
• UPC 12 Digit: 786364012902
• SKU Name: unistr p100010hg

Resources

• Manufacturer Spec Sheet
• Product Brochure
• Product Spec Sheet
