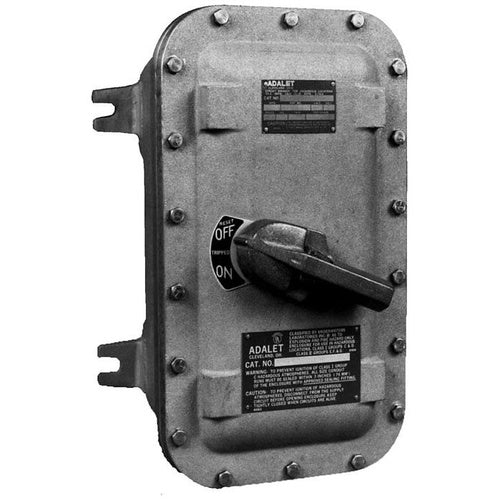

Adalet XCBB-N4-100DN3W Explosion-Proof Non-Fused Disconnect - 100A/3P/600V

Overview

Adalet XCBB-N4-100DN3W Explosion-Proof Non-Fused Disconnect - 100A/3P/600V

Product Specifications

• Full Technical Description: Copper-Free Cast Aluminum Alloy Enclosure Material; UL (Canada and Us) Approval; 480/600 Volt Voltage Rating; Class I Div 1 Groups B C D, Class II Groups E F G, Class III, NEMA Type 4 Enclosure; 100 Amp Current Rating; 75 HP Power Rating; 3 Pole(S); Explosionproof; Non-Fused Fuse Provision
• Manufacturer: ADALET PLM
• Sub Category: Explosionproof Disconnect Switch
• UPC 12 Digit: 781063142165
• SKU Name: xcbbn4100dn3w

Resources

• Manufacturer Spec Sheet
