Material: Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Pressure Bar
Approval: UL, CSA
Additional Information: Overall Dimension 7/8 Inch Length x 1-11/32 Inch Height
Catalog Number: 1H
Brand Name: Blackburn
Model: H

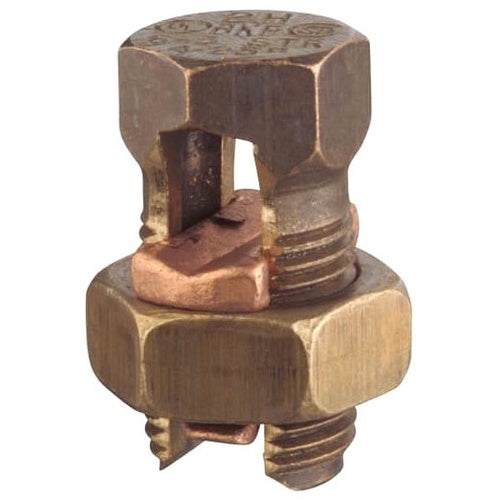

Type: Split Bolt
Installation: Hex Head Split Bolt
Conductor Material: Copper
Minimum Run Conductor Size: 6 AWG Solid
Maximum Run Conductor Size: 2 AWG Stranded
Catalog Description: TYPE H - HIGH STRENGTH SPLIT-BOLT CONNECTOR, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 2 STR-6 SOL, CONDUCTOR RANGE FOR MIN TAP WITH ONE MAX MAIN 14 SOL
Category: Large Terminals & Connectors
Full Technical Description: Split Bolt Type; Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Pressure Bar Material; 6 AWG Solid min. Run Conductor Size; 2 AWG Stranded Max. Run Conductor Size; 14 AWG Solid min. Tap Conductor Size; 2 AWG Stranded Max. Tap Conductor Size; Hex Head Split Bolt Installation; Copper Conductor Material; UL, CSA Approval; Overall Dimension 7/8 Inch Length X 1-11/32 Inch Height; H Model
