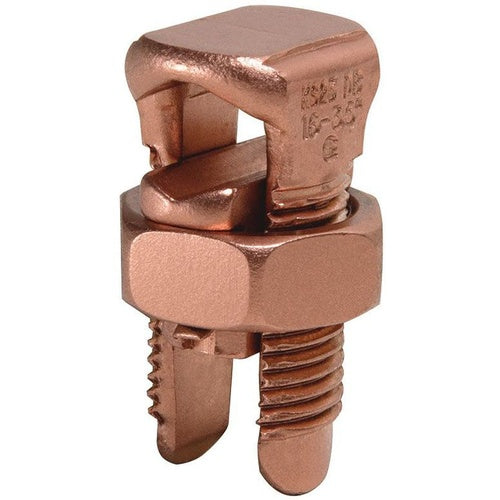

Burndy KS-23 2Str Copper Split Bolt(P)

Overview

Burndy KS-23 2Str Copper Split Bolt(P)

Product Specifications

• UPC: 78181001275
• Maximum Tap Conductor Size: 2 AWG Stranded (Copper), 1 AWG Solid, (3) 7 AWG Stranded, 3 AWG Type A, 5 AWG Type D (Copperweld)
• Material: High Copper Alloy
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Torque Rating 275 Inch-Pound; Cross Flat 0.82 Inch
• Catalog Number: KS23
• Brand Name: SERVIT[R]
• Model: KS
• Installation: Split Bolt
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 6 AWG Stranded (Copper)
• Maximum Run Conductor Size: 2 AWG Stranded (Copper), 1 AWG Solid, (3) 7 AWG Stranded, 3 AWG Type A, 5 AWG Type D (Copperweld)
• Minimum Tap Conductor Size: 14 AWG Stranded (Copper)
• Catalog Description: COPPER SPLIT BOLT, CU: 6 AWG-2 AWG (STR) (RUN & TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: High Copper Alloy Material; 6 AWG Stranded (Copper) min. Run Conductor Size; 2 AWG Stranded (Copper), 1 AWG Solid, (3) 7 AWG Stranded, 3 AWG Type A, 5 AWG Type D (Copperweld) Max. Run Conductor Size; 14 AWG Stranded (Copper) min. Tap Conductor Size; 2 AWG Stranded (Copper), 1 AWG Solid, (3) 7 AWG Stranded, 3 AWG Type A, 5 AWG Type D (Copperweld) Max. Tap Conductor Size; Split Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA Approval; Servit [R] Brand; RoHS Compliant; Torque Rating 275 Inch-Pound; Cross Flat 0.82 Inch; KS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810012758
• SKU Name: bur ks23

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
