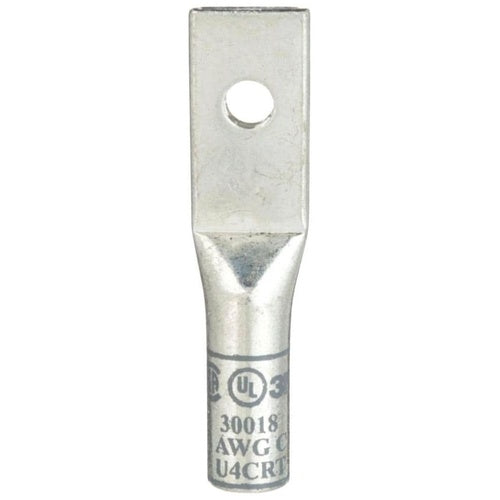

3M 30018 Scotchlok Copper 1-Hole Lug, Up To 35 Kv, 4 Awg, Stud Size #10 (5), Gray

Overview

3M 30018 Scotchlok Copper 1-Hole Lug, Up To 35 Kv, 4 Awg, Stud Size #10 (5), Gray

Product Specifications

• UPC: 05400712444
• Pad Size: 0.89 Inch L x 0.48 Inch W
• Number Of Pad Holes: 1
• Stud Size: #10
• Color: Gray
• Material: Tin Plated Copper
• Overall Length: 1.94 Inch
• Approval: UL, CSA
• Additional Information: Inside Diameter 0.24 Inch; Outside Diameter 0.34 Inch; Used On Copper Conductor; Application Indoor, Outdoor; Operating Temperature 105 Deg C
• Catalog Number: 30018
• Brand Name: Scotchlok[TM]
• Model: 30000
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 4 AWG
• Barrel Type: Standard
• Barrel Length: 0.75 Inch
• Catalog Description: THE 3M SCOTCHLOK COPPER LUGS 30000 SERIES ARE ONE HOLE, STANDARD BARREL LUGS FROM 64/0 AWG DESIGNED FOR TERMINATING COPPER CONDUCTORS. EACH LUG IS TIN PLATED TO RESIST CORROSION AND CAN BE INSTALLED WITH STANDARD INDUSTRY TOOLS. CHAMFERED ENDS ENSURE EASE OF CONDUCTOR INSERTION.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Gray Color; 1.94 Inch Overall Length; 0.75 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 4 AWG Conductor Size; #10 Stud Size; 0.89 Inch L X 0.48 Inch W Pad Size; 1 Pad Hole(S); Standard Barrel Type; Inside Diameter 0.24 Inch; Outside Diameter 0.34 Inch; Used on Copper Conductor; Application Indoor, Outdoor; Operating Temperature 105 Deg C; 30000 Model
• Manufacturer: 3M Co.
• Manufacturer Brand: 3M Electrical Products
• Sub Category: Compression Cable Lug
• Unspsc: 27121707
• UPC 12 Digit: 054007124443
• SKU Name: 3m 30018
