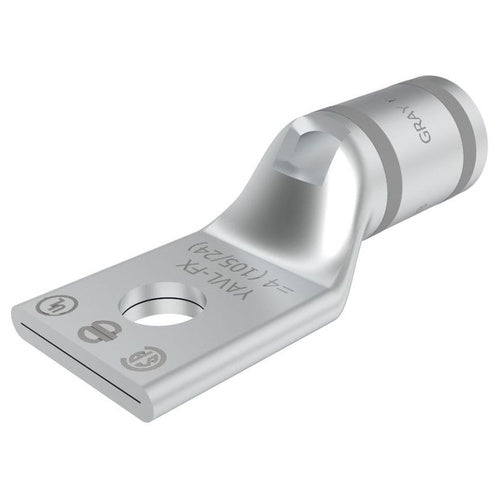

Burndy YAV4CLTC10FX 4Awg Terminal Lug

Overview

Burndy YAV4CLTC10FX 4Awg Terminal Lug

Product Specifications

• Catalog Description: 4 FLEX G,H,I,K,M,DLO, 4 AWG CU, ONE HOLE, #10 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GRAY COLOR CODE, 8 OR 346 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Gray Color; 1.32 Inch Overall Length; 0.5 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 40 and 50 (Navy), 91/24 to 105/24 Diesel Locomotive Cable, 4 AWG Class G/H/I (Weld), 4 AWG Solid/Stranded (Code) Conductor Size; #10 Stud Size; 8 Die Index; 0.55 Inch W X 0.09 Inch Thk Pad Size; 1 Pad Hole(S); Short, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1/2 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-L-FX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810022610
• SKU Name: yav4cltc10fx burndy

Resources

• Manufacturer Spec Sheet
