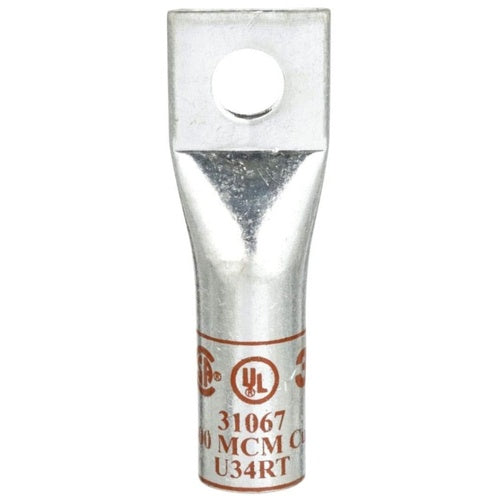

3M 31067 Scotchlok Copper 1-Hole Long Barrel Lug, Up To 35 Kv, 500 Kcmil, Brown

Overview

3M 31067 Scotchlok Copper 1-Hole Long Barrel Lug, Up To 35 Kv, 500 Kcmil, Brown

Product Specifications

• UPC: 05400712683
• Pad Size: 1.34 Inch Length x 1.53 Inch Width
• Number Of Pad Holes: 1
• Stud Size: 5/8 Inch
• Color: Brown
• Material: Tin Plated Copper
• Overall Length: 4.5 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Outer Diameter 1.06 Inch; Used On Copper Conductor; Application Indoor/Outdoor
• Catalog Number: 31067
• Brand Name: Scotchlok[TM]
• Model: 31000
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 500 KCMIL
• Barrel Type: Long
• Barrel Length: 2.19 Inch
• Catalog Description: THE 3M SCOTCHLOK COPPER LUGS 30000 SERIES ARE ONE HOLE, STANDARD BARREL LUGS FROM 64/0 AWG DESIGNED FOR TERMINATING COPPER CONDUCTORS. EACH LUG IS TIN PLATED TO RESIST CORROSION AND CAN BE INSTALLED WITH STANDARD INDUSTRY TOOLS. CHAMFERED ENDS ENSURE EASE OF CONDUCTOR INSERTION.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Brown Color; 4.5 Inch Overall Length; 2.19 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 500 kcmil Conductor Size; 5/8 Inch Stud Size; 1.34 Inch Length X 1.53 Inch Width Pad Size; 1 Pad Hole(S); Long Barrel Type; RoHS Compliant; Outer Diameter 1.06 Inch; Used on Copper Conductor; Application Indoor/Outdoor; 31000 Model
• Manufacturer: 3M Co.
• Manufacturer Brand: 3M Electrical Products
• Sub Category: Compression Cable Lug
• Unspsc: 27121707
• UPC 12 Digit: 054007126836
• SKU Name: 3m 31067
