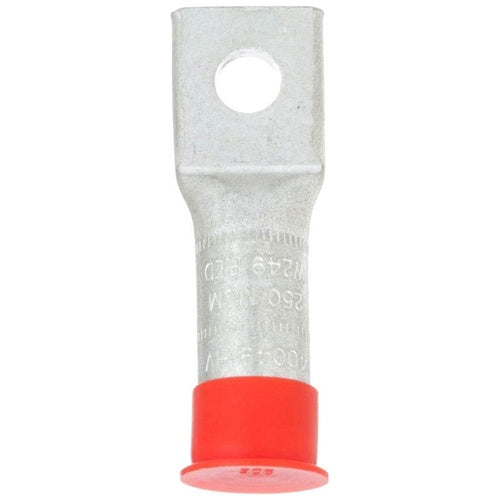

3M 40049 Scotchlok Aluminum 1-Hole Lug, Up To 35 Kv, 250 Kcmil, Red
Product Specifications
UPC: 05400713525
Pad Size: 1.31 Inch L x 1.24 Inch W
Number Of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Red
Die Index: 249
Material: Aluminum
Overall Length: 3.62 Inch
Approval: UL, CSA
Additional Information: Inside Diameter 0.59 Inch; Outside Diameter 0.9 Inch; Used On Aluminum/Copper Conductor; Application Indoor, Outdoor; Operating Temperature 90 Deg C
Catalog Number: 40049
Brand Name: Scotchlok[TM]
Model: 40000
Voltage Rating: 35 KV
Conductor Material: Aluminum/Copper
Conductor Size: 250 KCMIL
Barrel Type: Standard
Barrel Length: 1.56 Inch
Catalog Description: 3M SCOTCHLOK 40000 1 HOLE COMPRESSION LUG IS SUITABLE FOR USE ON COPPER OR ALUMINUM CONDUCTORS. THE LUG HAS A STANDARD BARREL THAT ENSURES A SECURE FIT. ALUMINUM CONSTRUCTION OFFERS HIGH CONDUCTIVITY AND AN ELECTRO TIN PLATED FINISH RESISTS CORROSION. IT IS RATED FOR 35 KV VOLTAGE APPLICATIONS.
Category: Large Terminals & Connectors
Full Technical Description: Aluminum Material; Red Color; 3.62 Inch Overall Length; 1.56 Inch Barrel Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 250 kcmil Conductor Size; 1/2 Inch Stud Size; 249 Die Index; 1.31 Inch L X 1.24 Inch W Pad Size; 1 Pad Hole(S); Standard Barrel Type; Inside Diameter 0.59 Inch; Outside Diameter 0.9 Inch; Used on Aluminum/Copper Conductor; Application Indoor, Outdoor; Operating Temperature 90 Deg C; 40000 Model
