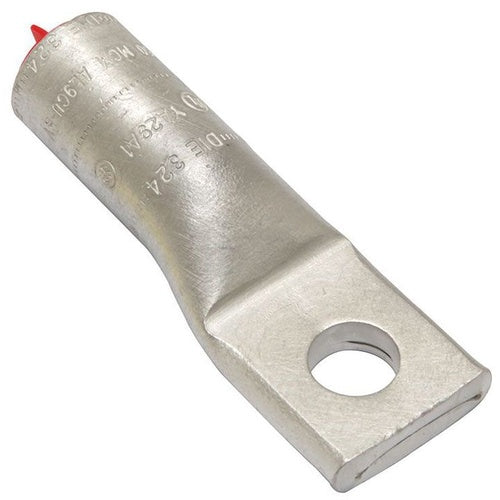

Catalog Description: 250 KCMIL, AL TERMINAL, ONE HOLE, 1/2", STUD SIZE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 324 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Electro-Tin Plated Wrought Aluminum Material; Red Color; 3.53 Inch Overall Length; 1.45 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 250 kcmil (Aluminum), 250 kcmil Stranded (Copper) Conductor Size; 1/2 Inch Stud Size; 324 Die Index; 1.26 Inch W X 0.33 Inch Thk Pad Size; 1 Pad Hole(S); Short, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window, Color Coded Cap; Temperature Rating 90 Deg C; Wire Strip Length 1-5/8 Inch; YA-A Model
Made In Usa: Yes
Manufacturer: BURNDY PRODUCTS
Manufacturer Brand: Burndy Products
Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
