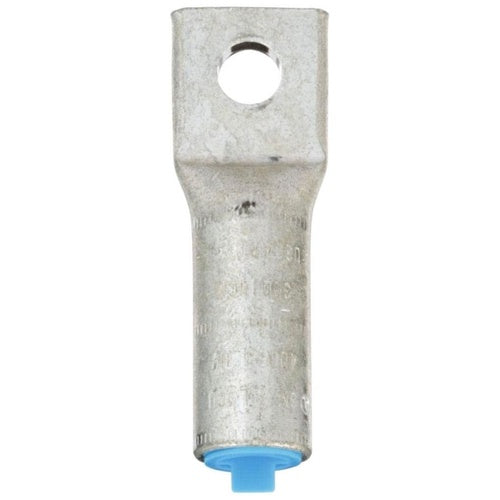

3M 40053 Scotchlok Aluminum 1-Hole Lug, Up To 35 Kv, 300 Kcmil, Blue
Product Specifications
UPC: 05400713541
Pad Size: 1.31 Inch L x 1.36 Inch W
Number Of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Dark Blue
Die Index: 251/470
Material: Aluminum
Overall Length: 4 Inch
Approval: UL, CSA
Additional Information: Inside Diameter 0.65 Inch; Outside Diameter 1 Inch; Used On Aluminum/Copper Conductor; Application Indoor, Outdoor; Operating Temperature 90 Deg C
Catalog Number: 40053
Brand Name: Scotchlok[TM]
Model: 40000
Voltage Rating: 35 KV
Conductor Material: Aluminum/Copper
Conductor Size: 300 KCMIL
Barrel Type: Standard
Barrel Length: 2.2 Inch
Catalog Description: 3M SCOTCHLOK 40000 1 HOLE COMPRESSION LUG IS SUITABLE FOR USE ON COPPER OR ALUMINUM CONDUCTORS. THE LUG HAS A STANDARD BARREL THAT ENSURES A SECURE FIT. ALUMINUM CONSTRUCTION OFFERS HIGH CONDUCTIVITY AND AN ELECTRO TIN PLATED FINISH RESISTS CORROSION. IT IS RATED FOR 35 KV VOLTAGE APPLICATIONS.
Category: Large Terminals & Connectors
Full Technical Description: Aluminum Material; Dark Blue Color; 4 Inch Overall Length; 2.2 Inch Barrel Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 300 kcmil Conductor Size; 1/2 Inch Stud Size; 251/470 Die Index; 1.31 Inch L X 1.36 Inch W Pad Size; 1 Pad Hole(S); Standard Barrel Type; Inside Diameter 0.65 Inch; Outside Diameter 1 Inch; Used on Aluminum/Copper Conductor; Application Indoor, Outdoor; Operating Temperature 90 Deg C; 40000 Model
