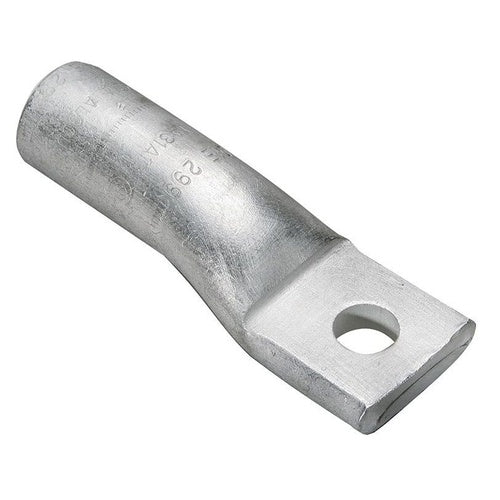

Catalog Description: 300 KCMIL , AL TERMINAL, ONE HOLE, 1/2", STUD SIZE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 470 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Electro-Tin Plated Wrought Aluminum Material; Blue Color; 3.9 Inch Overall Length; 1.53 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 300 kcmil (Aluminum), 300 kcmil Stranded (Copper) Conductor Size; 1/2 Inch Stud Size; 470 Die Index; 1.38 Inch W X 0.36 Inch Thk Pad Size; 1 Pad Hole(S); Short, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-3/4 Inch; YA-A Model
Made In Usa: Yes
Manufacturer: BURNDY PRODUCTS
Manufacturer Brand: Burndy Products
Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
