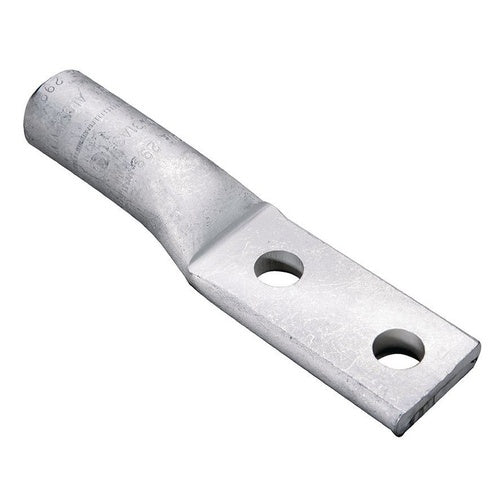

3M 40172 Scotchlok Aluminum 2-Hole Lug, Up To 35 Kv, 750 Kcmil, Yellow
Product Specifications
UPC: 05400713707
Pad Size: 3.62 Inch L x 1.75 Inch W
Number Of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Yellow
Die Index: 608/786/936
Material: Aluminum
Overall Length: 8.25 Inch
Approval: UL
Additional Information: Inside Diameter 1 Inch; Outside Diameter 1.5 Inch; Used On Aluminum/Copper Conductor; Application Indoor, Outdoor; Operating Temperature 90 Deg C
Catalog Number: 40172
Brand Name: Scotchlok[TM]
Model: 40000
Voltage Rating: 35 KV
Conductor Material: Aluminum/Copper
Conductor Size: 750 KCMIL
Barrel Type: Standard
Barrel Length: 3.38 Inch
Catalog Description: 3M SCOTCHLOK 40100 2 HOLE COMPRESSION LUG IS SUITABLE FOR USE WITH COPPER OR ALUMINUM CONDUCTORS. THE LUG HAS A STANDARD BARREL THAT ENSURES A SECURE FIT. ALUMINUM CONSTRUCTION OFFERS HIGH CONDUCTIVITY AND AN ELECTRO TIN PLATED FINISH RESISTS CORROSION. IT IS RATED FOR 35 KV VOLTAGE APPLICATIONS.
Category: Large Terminals & Connectors
Full Technical Description: Aluminum Material; Yellow Color; 8.25 Inch Overall Length; 3.38 Inch Barrel Length; Aluminum/Copper Conductor Material; UL Approval; 35 kV Voltage Rating; 750 kcmil Conductor Size; 1/2 Inch Stud Size; 608/786/936 Die Index; 3.62 Inch L X 1.75 Inch W Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard Barrel Type; Inside Diameter 1 Inch; Outside Diameter 1.5 Inch; Used on Aluminum/Copper Conductor; Application Indoor, Outdoor; Operating Temperature 90 Deg C; 40000 Model
