Additional Information: RoHS Compliant; Wire Strip Length 2-7/8 Inch; Cable Entry Type Beveled Entry; Includes Inspection Window; Temperature Rating 90 Deg C
Catalog Number: YA39A5
Brand Name: HYLUG[TM]
Model: Type YA-A
Voltage Rating: 600 V to 35 KV
Conductor Material: Aluminum/Copper
Conductor Size: 700 to 750 KCMIL Aluminum (Code), 700 to 750 KCMIL Stranded Copper (Code), 900 KCMIL Compact Aluminum (Code)
Barrel Type: Standard, Straight
Barrel Length: 2.46 Inch

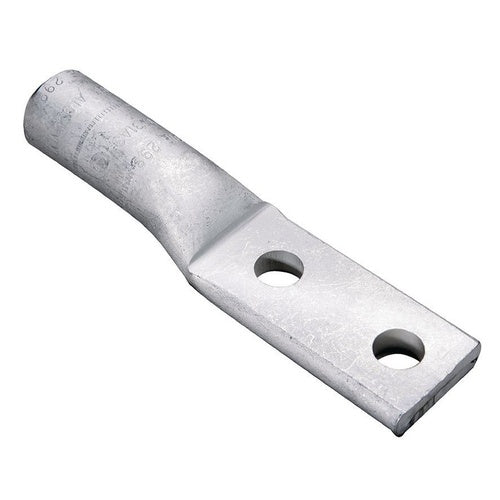

Catalog Description: 750 KCMIL, AL TERMINAL, TWO HOLE, 1/2" STUD SIZE, 1-3/4" HOLE SPACING, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, YELLOW COLOR CODE, 936 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Electro-Tin Plated Aluminum Material; Yellow Color; 7.07 Inch Overall Length; 2.46 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/B, CSA Approval; 600 V to 35 kV Voltage Rating; 700 to 750 kcmil Aluminum (Code), 700 to 750 kcmil Stranded Copper (Code), 900 kcmil Compact Aluminum (Code) Conductor Size; 1/2 Inch Stud Size; 936 Die Index; 1.62 Inch W X 0.43 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard, Straight Barrel Type; Hylug Brand; RoHS Compliant; Wire Strip Length 2-7/8 Inch; Cable Entry Type Beveled Entry; Includes Inspection Window; Temperature Rating 90 Deg C; TYPE YA-A Model
Made In Usa: Yes
Manufacturer: BURNDY PRODUCTS
Manufacturer Brand: Burndy Products
