Additional Information: Overall Dimension 1.06 Inch L x 0.59 Inch W x 0.05 Inch Thk; Voltage Rating 600 V (Building Wire), 1000 V (Signs, Fixtures); Terminal Material Tin Plated ETP Copper; Barrel Style Brazed Seam
Catalog Number: M8-516RK
Brand Name: Scotchlok[TM]
Model: M8
Type: Standard
Maximum Conductor Size: 8 AWG
Color: Red
Insulation Type: Non-Insulated
Stud Size: 5/16 Inch

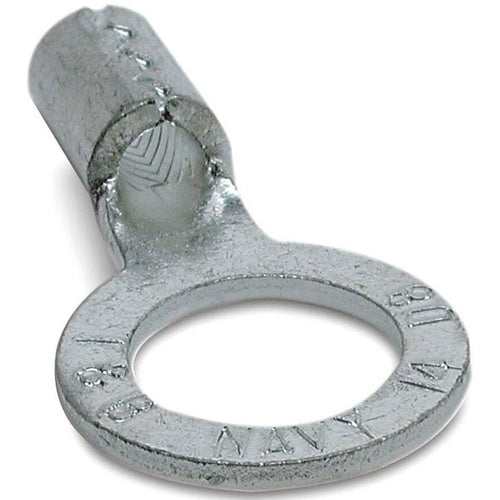

Catalog Description: 3M SCOTCHLOK RING TONGUE TERMINAL ENSURES AN IDEAL FIT WHILE OFFERING RELIABLE AND SAFE PERFORMANCE. THE NON-INSULATED, BRAZED-SEAM BARREL HAS A BEVELED MOUTH THAT GUIDES THE WIRE INTO POSITION, AND IT WITHSTANDS A MAXIMUM TEMPERATURE OF 347 DEGREES F (175 DEGREES C). ELECTROLYTIC COPPER CONSTRUCTION OFFERS GOOD CONDUCTIVITY AND A TIN-PLATED FINISH RESISTS CORROSION.
Category: Large Terminals & Connectors
Full Technical Description: Standard Type; Red Color; 8 AWG Max. Conductor Size; UL 486A, CSA C22.2 Approval; 347 Deg F Temperature Rating; 200 Per Case Standard Package; 5/16 Inch Stud Size; Non-Insulated Insulation Type; Overall Dimension 1.06 Inch L X 0.59 Inch W X 0.05 Inch Thk; Voltage Rating 600 V (Building Wire), 1000 V (Signs, Fixtures); Terminal Material Tin Plated Etp Copper; Barrel Style Brazed Seam; M8 Model
