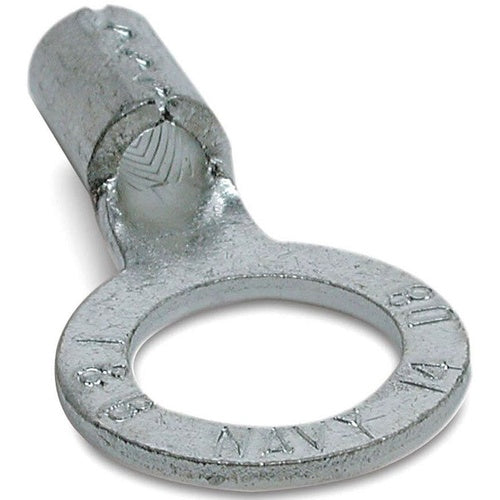

T&B D72 Non-Insulated Brazed Seam Ring Terminal 8 5/16
Product Specifications
UPC: 78621081156
Temperature Rating: 150 Deg C
Standard Package: 2000 per Outer Pack
Approval: UL 486A, CSA C22.2
Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.32 Inch Length x 0.59 Inch Width x 0.06 Inch Thickness; Material Copper; Finish Electro Tin Plated
Catalog Number: D72
Brand Name: Sta-Kon
Type: Standard
Minimum Conductor Size: 9 AWG
Maximum Conductor Size: 7 AWG
Color: Metallic
Insulation Type: Non-Insulated
Stud Size: 5/16 Inch
Catalog Description: NON-INSULATED LARGE BRAZED SEAM RING TERMINAL, LENGTH 1.32 INCHES, WIDTH .59 INCHES, BOLT HOLE 5/16 INCH, WIRE RANGE #8 AWG, COPPER, TIN PLATED, 200 PACK
Category: Large Terminals & Connectors
Full Technical Description: Standard Type; Metallic Color; 9 AWG min. Conductor Size; 7 AWG Max. Conductor Size; UL 486A, CSA C22.2 Approval; 150 Deg C Temperature Rating; 2000 Per Outer Pack Standard Package; 5/16 Inch Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.32 Inch Length X 0.59 Inch Width X 0.06 Inch Thickness; Material Copper; Finish Electro Tin Plated
