Additional Information: RoHS Compliant; Barrel Style Butted Seam; Voltage Rating 600 Volt; Barrel Inner Diameter 0.135 Inch; Overall Dimension 1.03 Inch Length x 0.38 Inch Width x 0.04 Inch Thickness; Maximum Wire Insulation Diameter 0.25 Inch

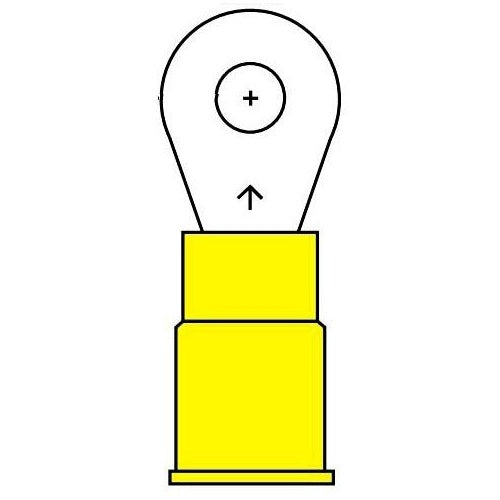

Catalog Number: MNG10-6RK
Brand Name: Scotchlok[TM]
Type: Standard
Minimum Conductor Size: 12 AWG
Maximum Conductor Size: 10 AWG
Color: Yellow
Insulation Type: Nylon with Insulated Grip
Stud Size: #6
Catalog Description: 3M SCOTCHLOK COLOR-CODED RING TONGUE TERMINAL ENSURES AN IDEAL FIT WHILE OFFERING RELIABLE AND SAFE PERFORMANCE. THE TERMINAL HAS A NYLON-INSULATED, BUTTED-SEAM BARREL AND WITHSTANDS TEMPERATURES OF -40 TO 221 DEGREES F (-40 TO 105 DEGREES C). ELECTROLYTIC COPPER CONSTRUCTION OFFERS GOOD CONDUCTIVITY AND A TIN-PLATED FINISH RESISTS CORROSION.
Category: Small Terminals & Connectors
Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; -40 to 105 Deg C Temperature Rating; 500 Per Case Standard Package; #6 Stud Size; Nylon With Insulated Grip Insulation Type; RoHS Compliant; Barrel Style Butted Seam; Voltage Rating 600 Volt; Barrel Inner Diameter 0.135 Inch; Overall Dimension 1.03 Inch Length X 0.38 Inch Width X 0.04 Inch Thickness; Maximum Wire Insulation Diameter 0.25 Inch
