Additional Information: ROHS COMPATIBLE; SIZE 1.11 INCH L X 0.3 INCH W; MATERIAL ELECTROLYTIC TIN PLATED COPPER; VOLTAGE RATING 300 V; OUTER DIAMETER 0.295; WIRE STRIP LENGTH 5/16 INCH; MAXIMUM INSULATION DIAMETER 0.209 INCH; DIE INDEX 311; PACKAGING TYPE BULK
Maximum Conductor Size: 10 AWG STRANDED (COPPER), 10 AWG (AIRCRAFT)
Color: YELLOW
Insulation Type: NYLON INSULATED

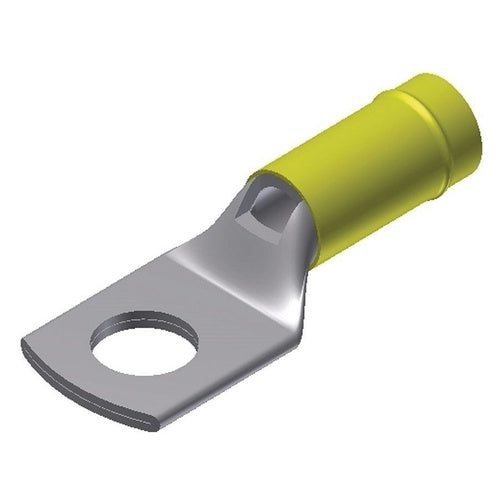

Catalog Description: COPPER LUG, RING TONGUE, 1 HOLE W/ INSPECTION HOLE, AN 12-10, #4-#5 STUD, INSULATED, SHORT BARREL, TIN PLATED, 600 VOLTS MAX.
Category: Large Terminals & Connectors
Full Technical Description: Seamless Barrel, Double Thick Tongue Type; Yellow Color; 12 AWG (Aircraft), 12 AWG Stranded (Copper) min. Conductor Size; 10 AWG Stranded (Copper), 10 AWG (Aircraft) Max. Conductor Size; UL Approval; 105 Deg C Temperature Rating; #4 to #6 Stud Size; Nylon Insulated Insulation Type; INSULUG[T], BURNDY[R] Brand; RoHS Compatible; Size 1.11 Inch L X 0.3 Inch W; Material Electrolytic Tin Plated Copper; Voltage Rating 300 V; Outer Diameter 0.295; Wire Strip Length 5/16 Inch; Maximum Insulation Diameter 0.209 Inch; Die Index 311; Packaging Type Bulk; YAEV Model
