Additional Information: Overall Dimension 0.92 Inch L x 0.31 Inch W x 0.03 Inch Thk; Voltage Rating 600 V (Building Wire), 1000 V (Signs, Fixtures); Terminal Material Tin Plated ETP Copper; Barrel Style Butted Seam; Includes Insulation Grip
Catalog Number: MNG18-10R/LK
Brand Name: Scotchlok[TM]
Model: MNG18
Type: Standard
Minimum Conductor Size: 22 AWG
Maximum Conductor Size: 18 AWG
Color: Red
Insulation Type: Nylon Insulated

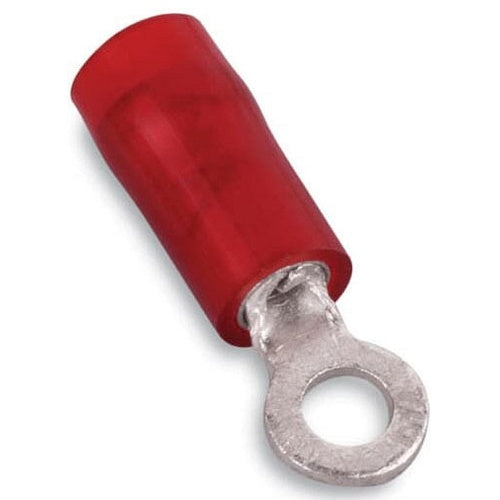

Catalog Description: 3M SCOTCHLOK COLOR-CODED LARGE RING TONGUE TERMINAL ENSURES AN IDEAL FIT WHILE OFFERING RELIABLE AND SAFE PERFORMANCE. THE TERMINAL HAS A NYLON-INSULATED, BUTTED-SEAM BARREL AND WITHSTANDS TEMPERATURES OF -40 TO 221 DEGREES F (-40 TO 105 DEGREES C). ELECTROLYTIC COPPER CONSTRUCTION OFFERS GOOD CONDUCTIVITY AND A TIN-PLATED FINISH RESISTS CORROSION.
Category: Large Terminals & Connectors
Full Technical Description: Standard Type; Red Color; 22 AWG min. Conductor Size; 18 AWG Max. Conductor Size; UL 486A, CSA C22.2 Approval; -40 to 221 Deg F Temperature Rating; 1000 Per Case Standard Package; #10 Stud Size; Nylon Insulated Insulation Type; Overall Dimension 0.92 Inch L X 0.31 Inch W X 0.03 Inch Thk; Voltage Rating 600 V (Building Wire), 1000 V (Signs, Fixtures); Terminal Material Tin Plated Etp Copper; Barrel Style Butted Seam; Includes Insulation Grip; MNG18 Model
