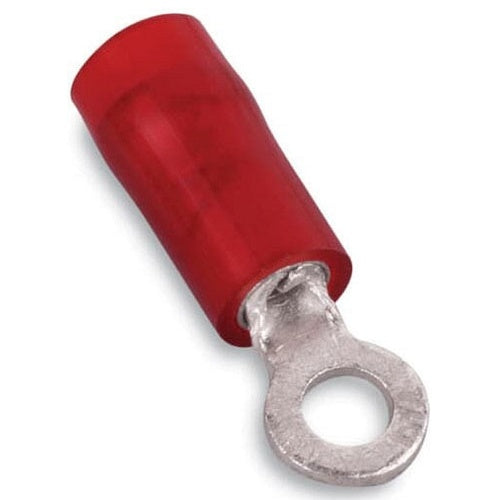

T&B RA873 Insulated Nylon Ring Terminal 22-16 Bolt No10 Red
Product Specifications
UPC: 78621081748
Approval: UL 486A/B, CSA 22.2
Additional Information: Size 0.89 Inch Length x 0.31 Inch Width; Maximum Insulation 0.136 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
Catalog Number: RA873
Minimum Conductor Size: 22 AWG
Maximum Conductor Size: 16 AWG
Color: Red
Insulation Type: Nylon Insulated
Stud Size: #10
Temperature Rating: 105 Deg C
Standard Package: 1000 per Pack
Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH .89 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .136, BOLT HOLE #10, WIRE RANGE #22-#16 AWG, COLOR RED, COPPER, TIN PLATED, 1,000 PACK
Category: Small Terminals & Connectors
Full Technical Description: Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 105 Deg C Temperature Rating; 1000 Per Pack Standard Package; #10 Stud Size; Nylon Insulated Insulation Type; Size 0.89 Inch Length X 0.31 Inch Width; Maximum Insulation 0.136 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
