Used On: Non-Metallic Sheathed/Service Entrance Cable
Additional Information: Applicable Standard NEMA FB-1; Includes Locknut
Catalog Number: 15233
Minimum Opening: 0.44 Inch
Maximum Opening: 0.74 Inch
Trade Size: 3/4 Inch
Thread Length: 0.44 Inch
Length: 0.66 Inch
Diameter: 1.81 Inch
Material: Malleable Iron

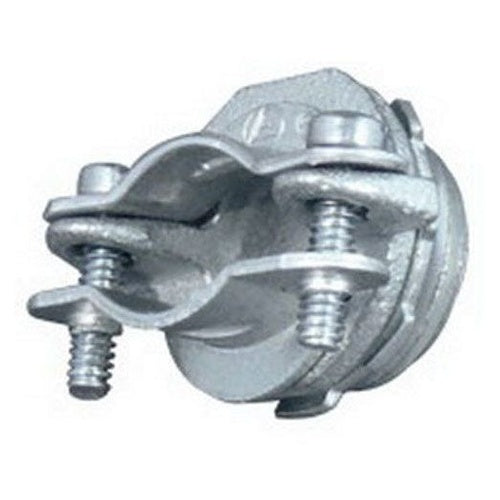

Catalog Description: CONDUIT CONNECTOR, SIZE: 3/4 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 0.44 - 0.74 IN, MATERIAL: MALLEABLE IRON, HEIGHT: 1.81 IN, WIDTH: 0.66 IN, THREAD LENGTH: 0.44 IN, STANDARD: UL 514B, UL LISTED: E23237, C
Category: Service Entrance Cable Fittings
Full Technical Description: 2-Screw, Clamp Type; Zinc Electroplated Malleable Iron Material; 0.66 Inch; Non-Metallic Sheathed/Service Entrance Cable Used on; 0.44 Inch Thread Length; 0.44 Inch min. Opening; 0.74 Inch Max. Opening; UL 514B, CSA C22.2 Approval; 1.81 Inch Diameter; 3/4 Inch Trade Size; Includes Locknut; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
