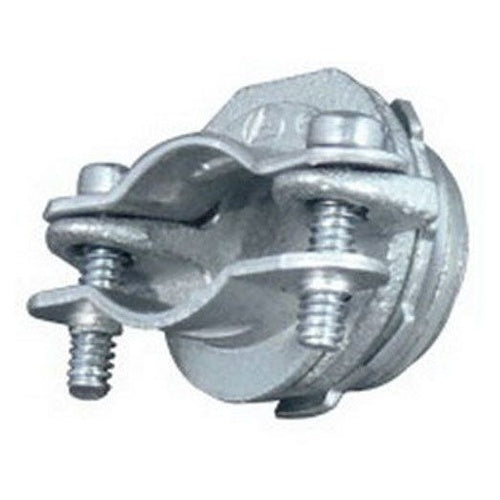

Appleton 15234 1" Malleable 2-Screw Service Entrance Connector
Product Specifications
UPC: 78138178050
Approval: UL 514B, CSA C22.2
Used On: Non-Metallic Sheathed/Service Entrance Cable
Additional Information: Applicable Standard NEMA FB-1; Includes Locknut
Catalog Number: 15234
Minimum Opening: 0.5 Inch
Maximum Opening: 0.97 Inch
Trade Size: 1 Inch
Thread Length: 0.56 Inch
Length: 0.66 Inch
Diameter: 2.03 Inch
Material: Malleable Iron
Catalog Description: CONDUIT CONNECTOR, SIZE: 1 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 1/2 - 0.97 IN, MATERIAL: MALLEABLE IRON, HEIGHT: 2.03 IN, WIDTH: 0.66 IN, THREAD LENGTH: 0.56 IN, STANDARD: UL 514B, UL LISTED: E23237, CSA
Category: Service Entrance Cable Fittings
Full Technical Description: 2-Screw, Clamp Type; Zinc Electroplated Malleable Iron Material; 0.66 Inch; Non-Metallic Sheathed/Service Entrance Cable Used on; 0.56 Inch Thread Length; 0.5 Inch min. Opening; 0.97 Inch Max. Opening; UL 514B, CSA C22.2 Approval; 2.03 Inch Diameter; 1 Inch Trade Size; Includes Locknut; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
