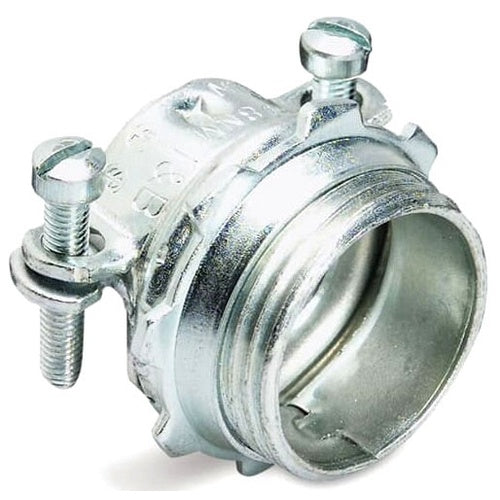

T&B 3304 1 2-Screw Connector

Overview

T&B 3304 1 2-Screw Connector

Product Specifications

• UPC: 78621003304
• Standard Package: 100 per Outer Pack
• Approval: UL, CSA
• Additional Information: Connection Type Straight; Overall Dimension 1-1/2 Inch Length x 1-7/8 Inch Width x 1-1/4 Inch Height
• Catalog Number: 3304
• Brand Name: T&B
• Installation: 2-Screw, Clamp
• Cable Type: Non-Metallic Sheathed/Flexible Cable
• Cable Size: (3) 8 AWG, (3) 6 AWG, (3) 4 AWG Non-Metallic Single Cable, (2) 8 AWG, (3) 10 AWG Non-Metallic Pair Cable, (2) 6 to 4 AWG (Ground), (2) 5 to 3 AWG (Ground), (2) 4 to 2 AWG (Ground) Service Entrance Cable
• Throat Type: Non-Insulated
• Knockout Size: 1 Inch
• Material: Electro Zinc Plated Chromate Coated Steel (Body/Clamp/Locknut)
• Catalog Description: SHEATHED CABLE FITTING, STRAIGHT, KNOCKOUT SIZE 1 INCH, TWO SCREW CONNECTOR, STEEL WITH ZINC PLATING
• Category: Non-Metallic Cable Cable Fittings
• Full Technical Description: Electro Zinc Plated Chromate Coated Steel (Body/Clamp/Locknut) Material; 2-Screw, Clamp Installation; Non-Metallic Sheathed/Flexible Cable Cable Type; (3) 8 AWG, (3) 6 AWG, (3) 4 AWG Non-Metallic Single Cable, (2) 8 AWG, (3) 10 AWG Non-Metallic Pair Cable, (2) 6 to 4 AWG (Ground), (2) 5 to 3 AWG (Ground), (2) 4 to 2 AWG (Ground) Service Entrance Cable Cable Size; UL, CSA Approval; 100 Per Outer Pack Standard Package; 1 Inch Knockout Size; Non-Insulated Throat Type; Connection Type Straight; Overall Dimension 1-1/2 Inch Length X 1-7/8 Inch Width X 1-1/4 Inch Height
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Nonmetallic Sheathed Cable Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210033044
• SKU Name: t&b 3304

Resources

• Manufacturer Spec Sheet
