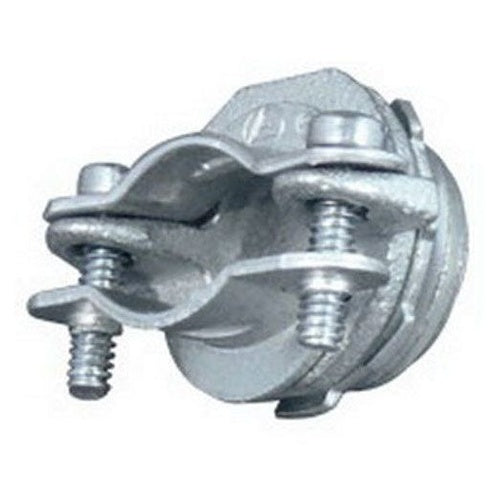

Appleton 15237 2" Malleable 2-Screw Service Entrance Connector
Product Specifications
UPC: 78138178075
Catalog Number: 15237
Brand Name: Appleton.
Model: 1523
Minimum Opening: 1 INCH
Maximum Opening: 2 INCH
Trade Size: 2 INCH
Approval: UL, CSA
Used On: NON METALLIC SHEATHED CABLE, SERVICE ENTRANCE CABLE
Catalog Description: CONDUIT CONNECTOR, SIZE: 2 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 1 - 2 IN, MATERIAL: MALLEABLE IRON, HEIGHT: 3-1/4 IN, WIDTH: 0.94 IN, THREAD LENGTH: 3/4 IN, STANDARD: UL 514B, UL LISTED: E23237, CSA STAND
Category: Service Entrance Cable Fittings
Full Technical Description: 2-Screw, Clamp Type; Zinc Electroplated Malleable Iron Material; 0.94 Inch; Non-Metallic Sheathed/Service Entrance Cable Used on; 0.75 Inch Thread Length; 1 Inch min. Opening; 2 Inch Max. Opening; UL 514B, CSA C22.2 Approval; 3.25 Inch Diameter; 2 Inch Trade Size; Includes Locknut; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
