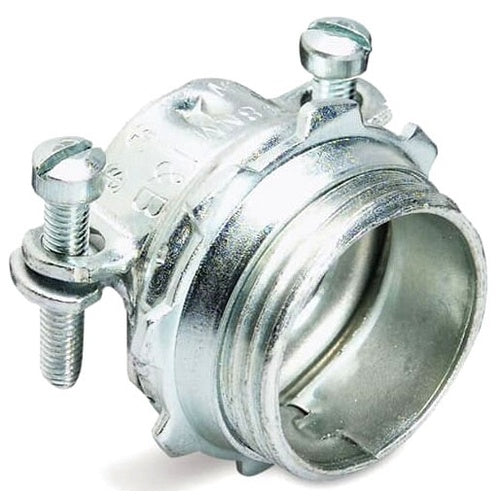

T&B 3307 2 2-Screw Connector

Overview

T&B 3307 2 2-Screw Connector

Product Specifications

• UPC: 78621003307
• Standard Package: 10 per Outer Pack
• Approval: UL, CSA
• Additional Information: Connection Type Straight; Overall Dimension 1-7/8 Inch Length x 3-1/4 Inch Width x 2-3/4 Inch Height
• Catalog Number: 3307
• Brand Name: T&B
• Installation: 2-Screw, Clamp
• Cable Type: Non-Metallic Sheathed/Flexible Cable
• Cable Size: 1.15 to 1.98 Inch Non-Metallic Single and Pair Cable
• Throat Type: Non-Insulated
• Knockout Size: 2 Inch
• Material: Electro Zinc Plated Chromate Coated Malleable Iron (Body), Steel (Clamp/Locknut)
• Catalog Description: SHEATHED CABLE FITTING, STRAIGHT, KNOCKOUT SIZE 2 INCH, TWO SCREW CONNECTOR, MALLEABLE IRON WITH ZINC PLATING
• Category: Non-Metallic Cable Cable Fittings
• Full Technical Description: Electro Zinc Plated Chromate Coated Malleable Iron (Body), Steel (Clamp/Locknut) Material; 2-Screw, Clamp Installation; Non-Metallic Sheathed/Flexible Cable Cable Type; 1.15 to 1.98 Inch Non-Metallic Single and Pair Cable Cable Size; UL, CSA Approval; 10 Per Outer Pack Standard Package; 2 Inch Knockout Size; Non-Insulated Throat Type; Connection Type Straight; Overall Dimension 1-7/8 Inch Length X 3-1/4 Inch Width X 2-3/4 Inch Height
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Nonmetallic Sheathed Cable Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210033075
• SKU Name: t&b 3307

Resources

• Manufacturer Spec Sheet
