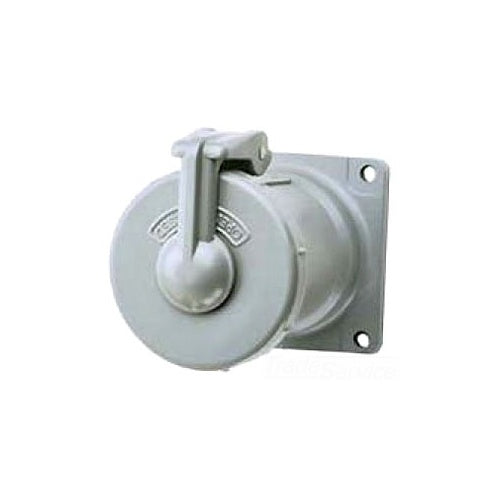

Appleton ADR1044 4W-4P Receptacle

Overview

Appleton ADR1044 4W-4P Receptacle

Product Specifications

• UPC: 78138118631
• Grounding Style: 1, Shell
• Door Type: Spring Door
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Grade: Commercial, Residential
• Approval: UL, CSA
• Additional Information: Wire Size 4 to 1 AWG (Building), 4 to 2 AWG (Extra Flexible); Wire Recess Size 0.391 Inch Diameter; Temperature Rating -13 to 104 Deg F; Enclosure Rating NEMA 3/3R/4/4X
• Catalog Number: ADR1044
• Brand Name: Powertite[TM]
• Type: Positive Polarized
• Constructional Feature: Weatherproof
• Voltage Rating: 600 Volt AC 50 to 400 Hertz, 250 Volt DC
• Current Rating: 100 Amp
• Number Of Poles: 4
• Number Of Wires: 4
• Catalog Description: POWERTITE GROUNDING STYLE 1 RECEPTACLE, NUMBER OF POLES: 4, NUMBER OF WIRES: 4, WIRE SIZE: 4 - 1 AWG (BUILDING), 4 - 2 AWG (EXTRA FLEX), AMPERAGE RATING: 100 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COP
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 4 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 100 Amp Current Rating; 4 Pole(S); Weatherproof, Rain Tight; Spring, Screw Cap; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Size 4 to 1 AWG (Building), 4 to 2 AWG (Extra Flexible); Wire Recess Diameter 0.391 Inch; Insulating Block Material Natural Glass Filled Polyester; Spring Material Brass With Beryllium Copper; Enclosure Rating NEMA 3/4/4X; Ambient Temperature Rating -13 to 104 Deg F; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781381186315
• SKU Name: app adr1044
