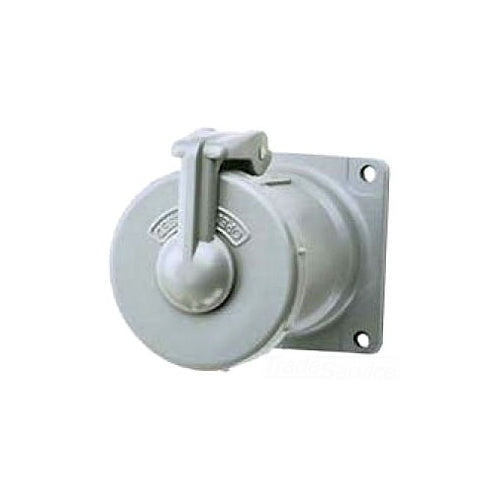

Killark VR1041 100A 4W4P Receptacle

Overview

Killark VR1041 100A 4W4P Receptacle

Product Specifications

• UPC: 78393683485
• Enclosure: NEMA 3/4/4X
• Approval: UL, CSA
• Catalog Number: VR1041
• Brand Name: VERSAMATE[R]
• Model: VR
• Voltage Rating: 600 VAC/250 VDC
• Current Rating: 100 Ampere
• Number Of Poles: 4
• Number Of Wires: 4
• Material: Electrostatically Applied Epoxy/Polyester Painted Copper Free Aluminum
• Catalog Description: 100A 4 POLE 4 WIRE RECEPTACLE ASSEMBLY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Electrostatically Applied Epoxy/Polyester Painted Copper Free Aluminum Material; 4 Wire(S); UL, CSA Approval; 600 Vac/250 VDC Voltage Rating; NEMA 3/4/4X Enclosure; 100 Ampere Current Rating; 4 Pole(S); VERSAMATE[R] Brand; VR Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pin And Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783936834856
• SKU Name: klrk vr1041

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
