Additional Information: FEDERAL SPECIFICATION W-C-586B
Catalog Number: BC300-M
Brand Name: Unilet[R]
Access Opening: Side
Configuration: C
Cover Type: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
Hub Location: Straight
Number Of Hubs: 2
Hub Size: 3 Inch

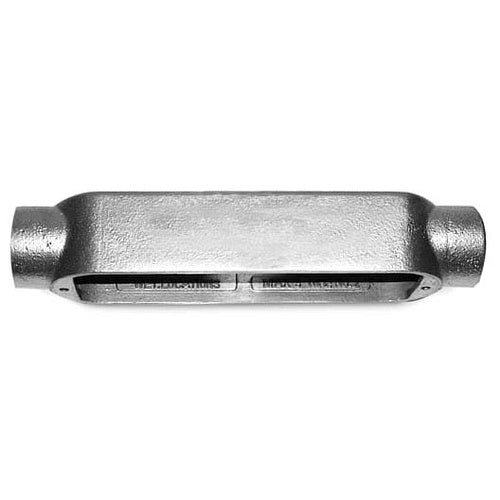

Catalog Description: MOGUL UNILETS TYPE C NEC 8X CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 3 IN, LENGTH: 26.88 IN, WIDTH: 4.63 IN, HEIGHT: 5.94 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDE
Category: Steel Conduit Bodies & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Screw) Material; 26.88 Inch Length X 4.63 Inch Width X 5.94 Inch Height Size; Imc/Threaded Rigid Metal Conduit Used on; 3 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL 514B, CSA C22.2 Approval; Straight Hub Location; Side Access Opening; UNILETS[R] Brand; Wire Size (3) 700 MCM; Capacity 475 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
