Additional Information: Includes Cover, Gasket, Screw
Catalog Number: BC8-TB
Model: BC
Access Opening: Straight Side
Configuration: C
Cover Type: Gray Iron
Hub Location: Straight
Number Of Hubs: 2
Hub Size: 3 Inch

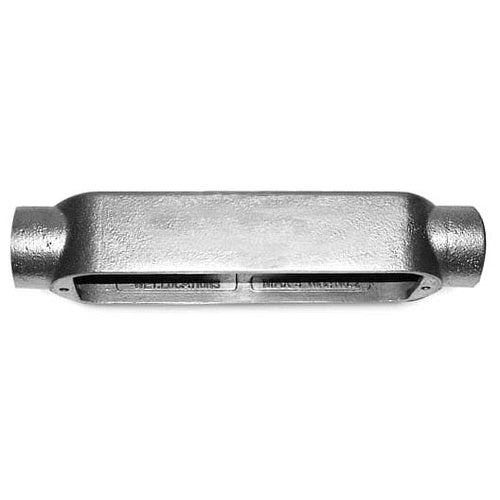

Catalog Description: 3 INCH MOGUL CONDUIT OUTLET BODY, COVER AND GASKET, C STYLE, THRU-FEED, BODY MATERIAL GRAY IRON, FINISH ELECTRO GALVANIZED, COVER MATERIAL GRAY IRON WITH STAINLESS STEEL COVER SCREWS, GASKET MATERIAL NEOPRENE
Category: Steel Conduit Bodies & Covers
Full Technical Description: Aluminum Acrylic Painted Electro Galvanized Gray Iron Alloy Body, Stainless Steel Screw, Neoprene Gasket Material; 18.38 Inch L X 4.25 Inch W X 4.38 Inch H Size; Rigid/Imc Conduit Used on; 3 Inch Hub Size; Screw Installation; C Configuration; 2 Hub(S); UL 514B, UL E2969, CSA C22.2 Approval; Gray Iron Cover Type; Straight Hub Location; Straight Side Access Opening; Mogul Brand; Includes Cover, Gasket, Screw; BC Model
